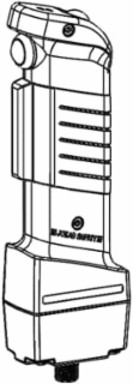

ABB 2TLA019995R0400 JSHD4-2-AD Three-position handheld device - Complete
- MPN: 2TLA019995R0400
- UPC: 888614098480
- PPN: ABB-2TLA019995R0400
CAD
$1159.92
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The JSHD4-2-AD is an ergonomic three-position device which top part has LEDs, a front button and a top button, and which bottom part is equipped with a M12-8 connector.
Specifications
Dimensions
| Product Net Depth / Length | 60 mm |
|---|---|
| Product Net Width | 34 mm |
| Product Net Height | 200 mm |
|---|---|
| Product Net Weight | 0.311 kg |
Safety Information
| Performance Level (PL) | Up to e |
|---|
| B10d Value | Operations to Bottom Position 968 000Operations to Middle Position 2 million |
|---|
Technical
| Communication Interface | Contacts |
|---|---|
| Maximum Switching Current | Main Circuit 0.02 mA |
| Minimum Switching Capacity | Main Circuit 8 mA, 10 VDC |
| Number of Contacts NC | 0 |
| Rated Operational Current DC-12 (Ie) | (24 V) 0.02 A |
| Technical Information | Operating force: Approx. 15 N for three-position button (ON), Approx. 45 N for three-position button (OFF), Approx. 2.5 N for top/front pushbutton; Mechanical service life: 1 million cycles, top to middle position, 100 000 cycles, middle to bottom position, and top/front push button |
| Connection Configuration | M12-8 male |
|---|---|
| Maximum Switching Voltage | Main Circuit 30 V |
| Number of Contacts CO | 2 |
| Number of Contacts NO | 0 |
| Rated Operational Voltage | 24 V DC |
Classifications
| eClass | V11.0 : 27371238 |
|---|---|
| Object Classification Code | B |
| ETIM 9 | EC002571 - Agreement switch |
|---|---|
| E-Number (Finland) | 2307364 |
Environmental
| Ambient Air Temperature | Operation -10 ... +70 °C |
|---|---|
| Material | Handle: Polyamide and NorylRubber: Neoprene |
| Degree of Protection | IP65 |
|---|
Technical UL/CSA
| Enclosure Type UL/CSA | 1 |
|---|
Ordering
| Minimum Order Quantity | 1 piece |
|---|---|
| Product Main Type | JSHD4 |
| Function | Three-position device used to allow a limited movement of the machine when the operator is in the dangerous area. |
| Status Indicator | Yes |
| Customs Tariff Number | 85369095 |
|---|---|
| Product Name | Three-position handheld device - Complete |
| Sub-Function | 1 front and 1 top auxiliary buttons |
