Hubbell Wiring Device-Kellems

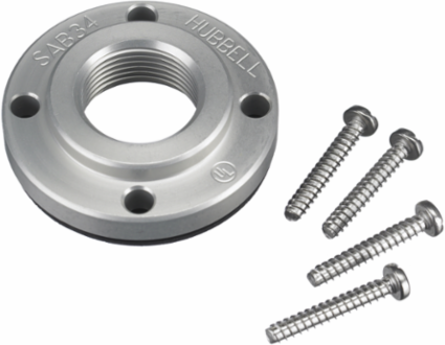

Hubbell Wiring Device-Kellems SAC34 Liquid Tight Adapter, 3/4 Inch NPT, for 30/32A-5 Wire

Liquid Tight Adapter, 3/4 Inch NPT, for 30/32A-5 Wire
  • MPN: SAC34
  • UPC: 783585140018
  • PPN: HBL-SAC34
  • UNSPSC: 39121402

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$144.46/ EA

Description

Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Accessories, Liquid Tight Adapter, For 30 and 32A- 5-Wire or 60 and 63A All Wire, 1/2" NPT, Furnished with Hardware

Features

  • Industrial Grade
  • Liquid Tight Adapter
  • 3/4" NPT

Specifications

Specifications

Country of Origin
Mexico
Industry Standard(s)
UL Listed
Color
Aluminum
Environmental Conditions
Watertight
Special Features
3/4" NPT
Type
Liquidtight Adapter
General Literature Asset 2 Display Text
Wiring Device Solutions for Strategic Manufacturing Facilities
Connectivity
Pressure Terminal Screws
Nema Rating
Non-NEMA
Class Code
A12
Freight Class Code
06168002
Image Actual Or Representative
A
Sub Class Code
A12A180
Material
Aluminum
Base Unit of Measure
EA
Carton - Gross Weight per Pack
4.500 lb.
Carton - Pack Description
Carton
Carton - Total Units
5 EA
Case Weight
7.329 lb.
Lowest Level UOM
Each
Pallet Height
44.000 in
Pallet Weight
892.800 lb.
Width2.500 in
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V-0 classification;Environmental - Ingress Protection - IP67 Suitability;Environmental - Operating Temperatures - Maximum Continuous: 75° C;Minimum Continuous: -40° C w/o impact;Mechanical - Impact Resistance - In accordance with UL746C;Mechanical - Product Identification - Identification and ratings are a part of the external label and molded into the receptacle mount;Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions
Cord TypeAll Portable
NEMA RatingNon-NEMA
StandardUL Listed
General Literature Asset 1 Display TextDual-Certified IEC Pin & Sleeve Devices
General Literature Asset 3 Display TextPulp & Paper Solutions
Display SizeStandard Sized
Style3/4" NPT
Description - InvoicePS, IEC/INS, L/T ADAPT, 3/4" HUB
Harmonization Code7616995190
MSDS FlagNo
Material - Mounting HardwareCord Mounted
SeriesAccessories
BOX SIZE4.400x4.900x4.900 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack783585140018
Case - Total Units50 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585140017
Pallet Length48.000 in
Pallet Width40.000 in

Certifications

EU RoHS Indicator
No
