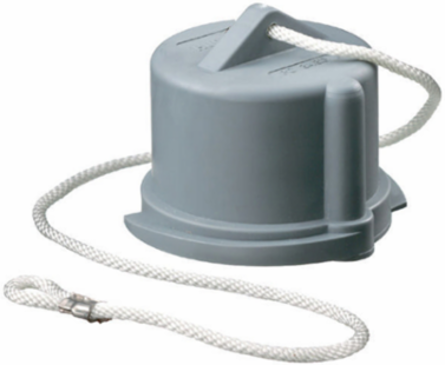

Hubbell Wiring Device-Kellems PC100 IEC Male Closure Cap for 100A All Wire, Watertight, Gray Non-Metallic
- MPN: PC100
- UPC: 783585371009
- PPN: HBL-PC100
- UNSPSC: 39121402
CAD
$147.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Accessories, Male Closure Cap, For 100A All Wire, Gray Non-Metallic
Features
- Cap assemblies provide watertight sealing
- Manufactured with non-metallic material
- Watertight
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Industry Standard(s) | UL Listed |
| Standards - RoHS Compliance Status | CM |
| Color | Gray |
| Environmental Conditions | Watertight |
| Special Features | Watertight |
| Type | Closure Caps |
| General Literature Asset 1 Display Text | Hubbell Marine Full Line Catalog |
| General Literature Asset 3 Display Text | Pulp & Paper Solutions |
| Display Size | Standard Sized |
| Style | Fits all 100 and 125A |
| Description - Invoice | PS, IEC, REPL, CLOSURE-CAP, ALL, 100A |
| Harmonization Code | 3923500000 |
| MSDS Flag | No |
| Sub Class Code | A12A180 |
| Material | Composite |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 4.750 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 EA |
| Each - Pack Description | Each |
| Pallet - GTIN - Package | 70783585371008 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| Width | 4.500 in |
|---|---|
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V-0 classification;Environmental - Moisture Resistance - IP67 Suitability;Environmental - Operating Temperatures - Max. Continuous:75°C;Min. Continuous:-40°C w/o impact;Mechanical - Impact Resistance - In accordance with UL746C;Mechanical - Product Identification - Ratings are a part of the external label and molded into the receptacle mount;Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions |
| Application | All 100 and 125 Amp |
| Cord Type | All Portable |
| NEMA Rating | Non-NEMA |
| Standard | UL Listed |
| Engineering Drawing 1 Display Text | PC100 AutoCAD Drawing |
| General Literature Asset 2 Display Text | IEC Pin & Sleeve Devices |
| Connectivity | Pressure Terminal Screws |
| Nema Rating | Non-NEMA |
| Class Code | A12 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Replaced Catalog Number | CP100 |
| Material - Mounting Hardware | Cord Mounted |
| Series | Accessories |
| BOX SIZE | 5.000x20.300x10.000 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 783585371009 |
| Case Weight | 6.115 lb. |
| Lowest Level UOM | Each |
| Pallet Height | 45.000 in |
| Pallet Weight | 400.950 lb. |
| NAICS Code | 3261992191 |
