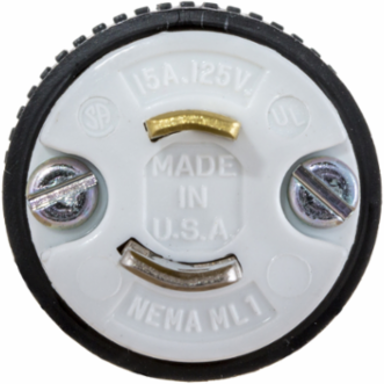

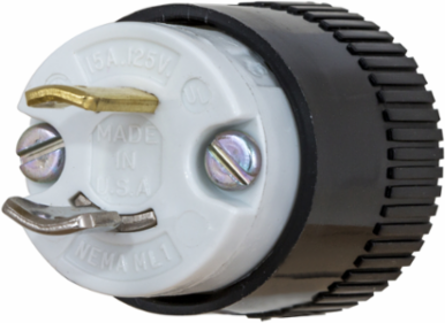

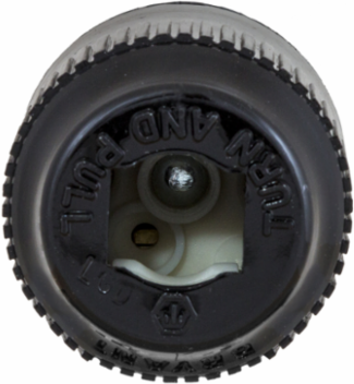

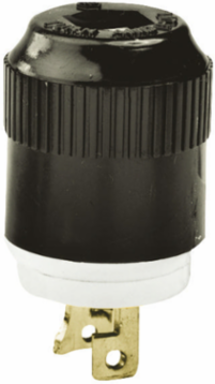

Bryant 7465N Midget Locking Male Plug, 15A 125V, 2-Pole 2-Wire, 1.25 Inch x 1.25 Inch x 1.60 Inch
- MPN: 7465N
- UPC: 781786628700
- PPN: HBL-7465N
- UNSPSC: 39121402
CAD
$29.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Locking Devices, Bryant Midget Locking, Industrial, Male Plug, 15A 125V, 2-Pole 2-Wire Non-Grounding, ML-1P, Screw Terminal, Black & White
Features
- Smaller body size for use in tighter fit applications where larger products can't
- Abuse resistant nylon housing
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Height
- 1.60 in
- Amperage Rating
- 15 A
- Cord Type
- All Listed Portables
- NEMA Rating
- ML-1P
- Number of Wires
- 2-Wire
- Size
- 1.25 in x 1.25 in x 1.60 in
- Type
- Connector Body
- Wire Size
- #18 AWG to #12 AWG
- Width
- 1.25 in
- Display Size
- Midget Locking
- Number Of Poles
- 2-Pole
- Style
- Non-Grounding
- Description - Invoice
- LKG PLUG, MIDGET, 15A 125V, ML-1P
- Harmonization Code
- 8536699902
- MSDS Flag
- No
- Material - Mounting Hardware
- Cord Mounted
- Current Rating
- 15 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 0.8 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 3.600 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 46.200 in
- Pallet Weight
- 1108.800 lb.
Dimensions1.25 in x 1.25 in x 1.60 in
Length1.25 in
ApplicationExtra Heavy Duty Industrial
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles2-Pole
PhaseSingle Phase
Special FeaturesStandard Product
Voltage Rating125 V
Voltage Rating Description125 V
ConnectivityScrew Terminals
Nema RatingML-1P
Number Of Wires2-Wire
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA08A172
Cord Diameter0.220-0.425 in
MaterialComposite
BOX SIZE2.500x6.400x2.700 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack781786628700
Case - Total Units50 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70781786628709
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
