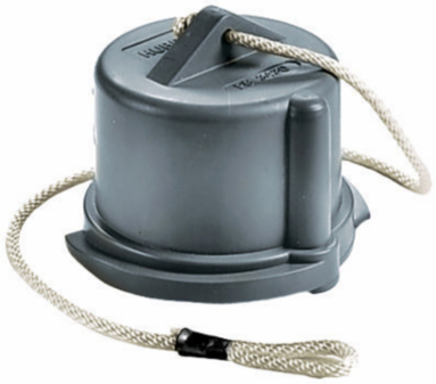

Hubbell Wiring Device-Kellems PC320 IEC Pin and Sleeve Male Closure Cap for 20A 3-Wire, Watertight, Gray
- MPN: PC320
- UPC: 783585373201
- PPN: HBL-PC320
- UNSPSC: 39121402
CAD
$108.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Accessories, Male Closure Cap, For 20A 3- Wire, Gray Non-Metallic
Features
- Cap assemblies provide watertight sealing
- Manufactured with non-metallic material
- Watertight
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Industry Standard(s)
- UL Listed
- Standards - RoHS Compliance Status
- CM
- Color
- Gray
- Environmental Conditions
- Watertight
- Special Features
- Watertight
- Type
- Closure Caps
- General Literature Asset 1 Display Text
- Hubbell Marine Full Line Catalog
- General Literature Asset 3 Display Text
- Pulp & Paper Solutions
- Display Size
- Standard Sized
- Style
- Fits all 16 and 20A, 3 wire
- Description - Invoice
- PS, IEC, REPL, CLOSURE-CAP, 3W, 20A
- Harmonization Code
- 3923500000
- MSDS Flag
- No
- Sub Class Code
- A12A180
- Material
- Composite
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.050 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Each - Pack Description
- Each
- NAICS Code
- 3261992191
Width3.300 in
PerformanceElectrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V-0 classification;Environmental - Moisture Resistance - IP67 Suitability;Environmental - Operating Temperatures - Max. Continuous:75°C;Min. Continuous:-40°C w/o impact;Mechanical - Impact Resistance - In accordance with UL746C;Mechanical - Product Identification - Identification and ratings are a part of the external label and molded into the receptacle mount;Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions
Application3-Wire 16 and 20 Amp
Cord TypeAll Portable
NEMA RatingNon-NEMA
StandardUL Listed
Engineering Drawing 1 Display TextPC320 AutoCAD Drawing
General Literature Asset 2 Display TextIEC Pin & Sleeve Devices
ConnectivityPressure Terminal Screws
Nema RatingNon-NEMA
Class CodeA12
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog NumberCP203
Material - Mounting HardwareCord Mounted
SeriesAccessories
BOX SIZE6.800x10.200x8.400 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585373201
Case Weight2.100 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
