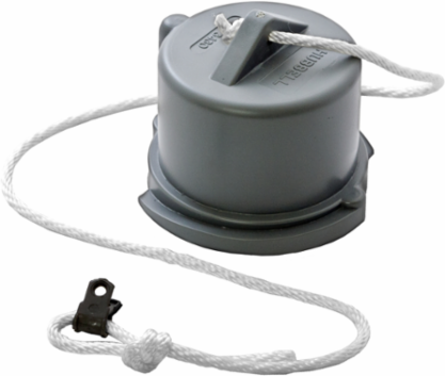

Hubbell Wiring Device-Kellems PC420 Male Closure Cap for 20A 4-Wire, Watertight, Gray
- MPN: PC420
- UPC: 783585374208
- PPN: HBL-PC420
- UNSPSC: 39121402
CAD
$92.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Accessories, Male Closure Cap, For 20A 4- Wire, Gray Non-Metallic
Features
- Cap assemblies provide watertight sealing
- Manufactured with non-metallic material
- Watertight
Documentation & Downloads
Specifications
Key Specifications
| Engineering Drawing 1 Display Text | PC420 AutoCAD Drawing |
|---|---|
| General Literature Asset 3 Display Text | PULP & PAPER SOLUTIONS |
| Width | 3.300 in |
| Performance | Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V-0 classification;Environmental - Moisture Resistance - IP67 Suitability;Environmental - Operating Temperatures - Max. Continuous:75°C;Min. Continuous:-40°C w/o impact;Mechanical - Impact Resistance - In accordance with UL746C;Mechanical - Product Identification - Identification and ratings are a part of the external label and molded into the receptacle mount;Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions |
| Color | Gray |
| Environmental Conditions | Watertight |
| Special Features | Watertight |
| Type | Closure Caps |
| Connectivity | Pressure Terminal Screws |
| Nema Rating | Non-NEMA |
| Class Code | A12 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Replaced Catalog Number | CP204 |
| Material - Mounting Hardware | Cord Mounted |
| Series | Accessories |
| BOX SIZE | 6.000x10.300x8.800 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 783585374208 |
| Case Weight | 2.250 lb. |
| Lowest Level UOM | Each |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| General Literature Asset 2 Display Text | Pulp & Paper Solutions |
|---|---|
| Country of Origin | United States |
| Industry Standard(s) | UL Listed |
| Application | 4-Wire 16 and 20 Amp |
| Cord Type | All Portable |
| NEMA Rating | Non-NEMA |
| Standard | UL Listed |
| General Literature Asset 1 Display Text | Hubbell PRO Pin & Sleeve Brochure |
| Display Size | Standard Sized |
| Style | Fits all 16 and 20A, 4 wire |
| Description - Invoice | PS, IEC, REPL, CLOSURE-CAP, 4W, 20A |
| Harmonization Code | 3923500100 |
| MSDS Flag | No |
| Sub Class Code | A12A180 |
| Material | Composite |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 1.900 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 EA |
| Each - Pack Description | Each |
| Pallet Height | 47.000 in |
| Pallet Weight | 339.250 lb. |
| NAICS Code | 3261992191 |
