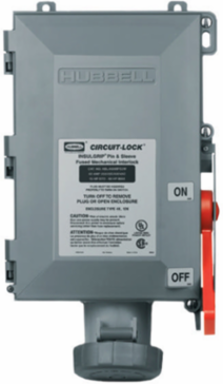

Hubbell Wiring Device-Kellems HBL560MIF9W IEC Pin and Sleeve 60A Fused Receptacle, 4-Pole, 120/208V AC, Watertight
- MPN: HBL560MIF9W
- UPC: 783585520995
- PPN: HBL-HBL560MIF9W
- UNSPSC: 39121406
CAD
$4037.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty IEC Pin and Sleeve Industrial Grade Female Fused Mechanically Interlocked Receptacle, 60A 3-Phase Wye 120/208V AC, 4-Pole 5-Wire Grounding
Features
- Replaceable spring-loaded receptacle liftcover with gasket
- Removable door for ease of wiring and installation
- Plug-Check™ mechanism to detect the presence of plug
- Watertight
Specifications
Additional
- Amperage
- 60 A
- Phase
- Three Phase Wye
- Number of Wires
- 5-Wire Grounding
- Wire Size
- #8 AWG to #2 AWG
- Connectivity
- Pressure Terminal Screws
- Style
- Standard Service
- Color
- Blue
- Operating Temperature Range
- -40°C to +75°C
- Certifications
- UL Listed for US and Canada, CSA Certified
- Country of Origin
- US
Voltage3 Phase Y 120/208 VAC
Number of Poles4-Pole
Wattage12480 W
MaterialThermoplastic, Brass, Neoprene, Valox
Mounting TypeScrew Mounting
TypeMechanical Interlock
Ingress ProtectionIP66
Flammability RatingUL94-5VA and V-0
NEMA RatingNon-NEMA
