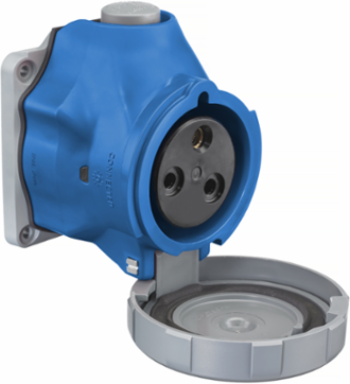

Hubbell Wiring Device-Kellems HBLS360R6W Heavy Duty IEC Pin and Sleeve Receptacle, 60A 250V, NEMA 4X/IP69K
- MPN: HBLS360R6W
- UPC: 783585478548
- PPN: HBL-HBLS360R6W
- UNSPSC: 39121406
CAD
$1185.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty Products, IEC Pin and Sleeve, Receptacle, Switched, 60A 250V AC/220-240V AC, 2-Pole 3-Wire Grounding,NEMA 4X/IP69K
Features
- Mates with existing installed base of IEC 60309-2 pin and sleeve devices
- Approved as a diconnecting means for motor circuits and branch circuits
- UL Type 4X, 12 and IP69k environmental ratings
- Impact and corrosion-resistant PBT that is color coded by voltage
- Unswitched ground and power indicating LED lights
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 6.400 in
- Color
- Blue
- Number of Wires
- 3-Wire
- Voltage Rating
- 250 VAC/220-250 VAC
- Engineering Drawing 1 Display Text
- HBLS360R6W AutoCAD Drawing
- General Literature Asset 2 Display Text
- IEC Pin & Sleeve Devices
- Number Of Poles
- 2-Pole
- Style
- IP69k NEMA 4X
- Description - Invoice
- SW RCPT,2P3W,60A 250V/63A220-240V,4X/69K
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Series
- Advantage® Series
- BOX SIZE
- 8.000x20.200x12.200 (in)
- Carton - Number of Sub Packs
- 6
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585478548
- NAICS Code
- 335931A104
Current / Amperage Rating60/63 A
Amperage Rating60/63 A
Number of Poles2-Pole
TypeWatertight Receptacle
Voltage Rating Description250 VAC/220-250 VAC
General Literature Asset 1 Display TextSafety Product Guide
General Literature Asset 3 Display TextAdvantage™ Series Switch-Rated IEC Pin & Sleeve Devices
Number Of Wires3-Wire
Class CodeA12
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA12A180
Base Unit of MeasureEA
Carton - Gross Weight per Pack16.400 lb.
Carton - Pack DescriptionCarton
Carton - Total Units6 EA
Certifications
- EU RoHS Indicator
- Contact Manufacturer
