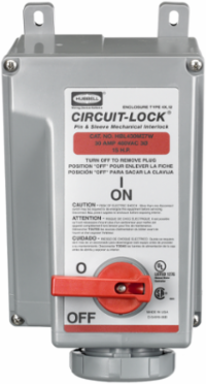

Hubbell Wiring Device-Kellems HBL430MI7W Industrial Grade Female Mechanically Interlocked Receptacle, 30A 3-Pole 4-Wire 480V AC
- MPN: HBL430MI7W
- UPC: 783585405971
- PPN: HBL-HBL430MI7W
- UNSPSC: 39121406
CAD
$2147.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female Mechanically Interlocked Receptacle, 30A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, Terminal Screws
Features
- Large gears enclosed in a gear box
- Lockable handle to meet OSHA Lockout/Tagout regulations
- Pre-wired IEC Pin and Sleeve receptacle
- Watertight
Specifications
Key Specifications
- General Literature Asset 1 Display Text
- Circuit-Lock® Rounded Sloped Top Motor Disconnects
- General Literature Asset 3 Display Text
- Circuit-Lock® Motor Disconnects
- Current / Amperage Rating
- 30 A
- Industry Standard(s)
- UL Listed
- Amperage Rating
- 30 A
- Color
- Red
- NEMA Rating
- Non-NEMA
- Number of Wires
- 4-Wire
- Special Features
- Watertight
- Type
- Mechanical Interlock
- Wattage
- 14400
- Voltage Rating Description
- 3 Phase 480 VAC
- Display Size
- Standard Sized Product
- Number Of Poles
- 3-Pole
- Style
- Standard Service
- Description - Invoice
- PS, IEC, MECHINT, 3P4W, 30A 3P 480V, W/T
- Harmonization Code
- 8537109999
- MSDS Flag
- No
- Sub Class Code
- A12A210
- Current Rating
- 30 A
- Series
- Non-Fused
- BOX SIZE
- 7.300x12.400x7.900 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585405971
- Case Weight
- 6.230 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 43.800 in
- Pallet Weight
- 718.200 lb.
- NAICS Code
- 335931A104
General Literature Asset 2 Display TextIndustrial Solutions
Country of OriginUnited States
Width7.900 in
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current and voltage;Electrical - Dielectric Voltage - Withstands 3,000V AC Min;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V-0 Classification;Environmental - Ingress Protection - IP67 Suitability;Environmental - Moisture Resistance - Outdoor - 4X (Watertight, Washdown);Indoor - 12 (Dust-tight, Falling Dirt and Noncorrosive Liquids).;Environmental - Operating Temperature - Max. Continuous +75°C;Min. Continuous -40°C;Mechanical - Impact Resistance - In accordance with UL 746C;Mechanical - Mounting - External adjustable feet;Mechanical - Product Identification - Identification and ratings are part of the external label and molded into the receptacle mount;Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions
ApplicationHigh Ampacity Watertight Connections
Environmental ConditionsWatertight
Number of Poles3-Pole
PhaseThree Phase
StandardUL Listed
Voltage Rating3 Phase 480 VAC
Wire Size#12 AWG to #8 AWG
ConnectivityPressure Terminal Screws
Nema RatingNon-NEMA
Number Of Wires4-Wire
Class CodeA12
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog NumberMI430R7WB
Material - Mounting HardwareScrew Mounting
MaterialThermoplastic
Base Unit of MeasureEA
Carton - Gross Weight per Pack4.308 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585405970
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- No
