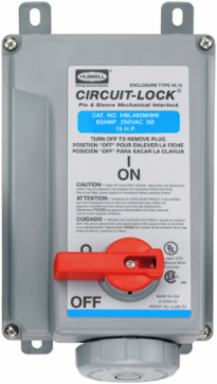

Hubbell Wiring Device-Kellems HBL460MI9WR Heavy Duty Female Mechanical Interlocked Receptacle, 60A 3-Pole 4-Wire, Watertight
- MPN: HBL460MI9WR
- UPC: 783585012643
- PPN: HBL-HBL460MI9WR
- UNSPSC: 39121406
CAD
$2932.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Mechanically Interlocked Receptacle, 60A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, Terminal Screws
Features
- Captured neoprene gasket for a watertight seal
- DIN rail mounted switch for easy installation and replacement
- Solid pins for longer life and reliable electrical contact
- Watertight
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Width | 8.800 in |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current and voltage;Electrical - Dielectric Voltage - Withstands 3,000V AC Min;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V-0 Classification;Environmental - Ingress Protection - IP67 Suitability;Environmental - Moisture Resistance - Outdoor - 4X (Watertight, Washdown);Indoor - 12 (Dust-tight, Falling Dirt and Noncorrosive Liquids).;Environmental - Operating Temperature - Max. Continuous +75°C;Min. Continuous -40°C;Mechanical - Impact Resistance - In accordance with UL 746C;Mechanical - Mounting - External adjustable feet;Mechanical - Product Identification - Identification and ratings are part of the external label and molded into the receptacle mount;Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions |
| Application | High Ampacity Watertight Connections |
| Environmental Conditions | Watertight |
| Number of Poles | 3-Pole |
| Phase | Three Phase |
| Standard | UL Listed |
| Voltage Rating | 3 Phase 240 VAC |
| Wire Size | #8 AWG to #2 AWG |
| Weight | 8.1 lb. |
| General Literature Asset 1 Display Text | Circuit-Lock® Rounded Sloped Top Motor Disconnects |
| General Literature Asset 3 Display Text | IEC Pin & Sleeve Devices |
| Display Size | Standard Sized Product |
| Number Of Poles | 3-Pole |
| Style | Reverse Service |
| Description - Invoice | PS, IEC, MECHINT, 3P4W, 60A 3P 250V, REV |
| Harmonization Code | 8537109170 |
| MSDS Flag | No |
| Material - Mounting Hardware | Screw Mounting |
| Material | Thermoplastic |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585012643 |
| Lowest Level UOM | Each |
| Current / Amperage Rating | 60 A |
|---|---|
| Industry Standard(s) | UL Listed |
| Amperage Rating | 60 A |
| Color | Blue |
| NEMA Rating | Non-NEMA |
| Number of Wires | 4-Wire |
| Special Features | Watertight |
| Type | Mechanical Interlock |
| Wattage | 15000 W |
| Voltage Rating Description | 3 Phase 240 VAC |
| Engineering Drawing 1 Display Text | HBL460MI9WR AutoCAD Drawing |
| General Literature Asset 2 Display Text | Circuit-Lock® Motor Disconnects |
| Connectivity | Pressure Terminal Screws |
| Nema Rating | Non-NEMA |
| Number Of Wires | 4-Wire |
| Class Code | A12 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A12A210 |
| Current Rating | 60 A |
| Series | Non-Fused |
| BOX SIZE | (in) |
| Each - Pack Description | Each |
| NAICS Code | 335931A104 |
