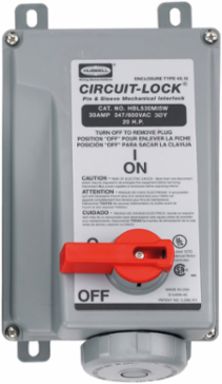

Hubbell Wiring Device-Kellems HBL530MI5W Heavy-Duty Mechanically Interlocked Receptacle, 30A 4-Pole 5-Wire, 347/600V AC
Hubbell Wiring Device-Kellems HBL530MI5W Heavy-Duty Mechanically Interlocked Receptacle, 30A 4-Pole 5-Wire, 347/600V AC
- MPN: HBL530MI5W
- UPC: 783585406121
- PPN: HBL-HBL530MI5W
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2337.82/ EA
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Mechanically Interlocked Receptacle, 30A 3-Phase Wye 347/600V AC , 4-Pole 5-Wire Grounding, Terminal Screws
Features
- Large gears enclosed in a gear box
- Lockable handle to meet OSHA Lockout/Tagout regulations
- Pre-wired IEC Pin and Sleeve receptacle
- Watertight
Specifications
Specifications
- Country of Origin
- Puerto Rico
- Width
- 7.900 in
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current and voltage;Electrical - Dielectric Voltage - Withstands 3,000V AC Min;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V-0 Classification;Environmental - Ingress Protection - IP67 Suitability;Environmental - Moisture Resistance - Outdoor - 4X (Watertight, Washdown);Indoor - 12 (Dust-tight, Falling Dirt and Noncorrosive Liquids).;Environmental - Operating Temperature - Max. Continuous +75°C;Min. Continuous -40°C;Mechanical - Impact Resistance - In accordance with UL 746C;Mechanical - Mounting - External adjustable feet;Mechanical - Product Identification - Identification and ratings are part of the external label and molded into the receptacle mount;Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions
- Application
- High Ampacity Watertight Connections
- Environmental Conditions
- Watertight
- Number of Poles
- 4-Pole
- Phase
- Three Phase
- Standard
- UL Listed
- Voltage Rating
- 3 Phase Y 347/600 VAC
- Wire Size
- #12 AWG to #8 AWG
- General Literature Asset 1 Display Text
- Circuit-Lock® Rounded Sloped Top Motor Disconnects
- General Literature Asset 3 Display Text
- IEC Pin & Sleeve Devices
- Display Size
- Standard Sized Product
- Number Of Poles
- 4-Pole
- Style
- Standard Service
- Description - Invoice
- PS, IEC, MECHINT, 4P5W, 30A 347/600V,W/T
- Harmonization Code
- 8537109170
- MSDS Flag
- No
- Sub Class Code
- A12A210
- Current Rating
- 30 A
- Series
- Non-Fused
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585406121
- Lowest Level UOM
- Each
Current / Amperage Rating30 A
Industry Standard(s)UL Listed
Amperage Rating30 A
ColorBlack
NEMA RatingNon-NEMA
Number of Wires5-Wire
Special FeaturesWatertight
TypeMechanical Interlock
Wattage18000
Voltage Rating Description3 Phase Y 347/600 VAC
General Literature Asset 2 Display TextImproved Short Circuit Current Ratings (SCCR)
ConnectivityPressure Terminal Screws
Nema RatingNon-NEMA
Number Of Wires5-Wire
Class CodeA12
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number530MI5W;530MIF5W;560MI5W;HBL530MIF5W;MI530R5W
Material - Mounting HardwareScrew Mounting
MaterialThermoplastic
Base Unit of MeasureEA
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- No
