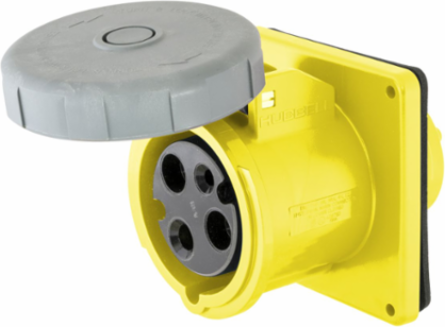

Hubbell Wiring Device-Kellems HBL330R4W Watertight 30A Female Receptacle, 2-Pole 3-Wire, Yellow
Hubbell Wiring Device-Kellems HBL330R4W Watertight 30A Female Receptacle, 2-Pole 3-Wire, Yellow
- MPN: HBL330R4W
- UPC: 783585403618
- PPN: HBL-HBL330R4W
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$442.94/ EA
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Receptacle, 30A 125V AC, 2-Pole 3- Wire Grounding, Terminal Screws, Yellow, Watertight
Features
- Corrosion-resistant self-closing gasketed cover
- Insulated non-metallic housing
- Color coded housings for easy identification
- Watertight
Specifications
Specifications
- Country of Origin
- US
- Width
- 4.800 in
- Industry Standard(s)
- CSA StandardC22.2 No. 182.1;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146032
- Amperage Rating
- 30 A
- Color
- Yellow
- NEMA Rating
- Non-NEMA
- Number of Wires
- 3-Wire
- Special Features
- Watertight
- Type
- Watertight Receptacle
- Wattage
- 3750
- Voltage Rating Description
- 125 VAC
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Style
- Standard Service
- Description - Invoice
- PS, IEC, RECP, 2P3W, 30A 125V, W/T
- Harmonization Code
- 8536699999
- MSDS Flag
- No
- Sub Class Code
- A12A180
- Current Rating
- 30 A
- Series
- HBL Heavy Duty
- BOX SIZE
- 5.600x22.200x10.000 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585403618
- Case Weight
- 13.300 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating30 A
Each - Width4.800 in
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - 3000V AC;Electrical - Max. Working Voltage - 600V RMS;Electrical - Temperature Rise - Max. 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%;Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17;Environmental - Ingress Protection - IP67 Suitability;Environmental - Moisture Resistance - Watertight per IEC 60309-1;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum - 40°C w/o impact;Mechanical - Impact Resistance - Per CSA C22.2 No.182.1 /UL1682;Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
ApplicationHigh Ampacity Watertight Connections
Environmental ConditionsWatertight
Number of Poles2-Pole
PhaseSingle Phase
StandardCSA StandardC22.2 No. 182.1;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146032
Voltage Rating125 VAC
Wire Size#12 AWG to #8 AWG
ConnectivityPressure Terminal Screws
Nema RatingNon-NEMA
Number Of Wires3-Wire
Class CodeA12
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number330R4W
Material - Mounting HardwareScrew Mounting
MaterialThermoplastic
Base Unit of MeasureEA
Carton - Gross Weight per Pack14.35 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Yes
