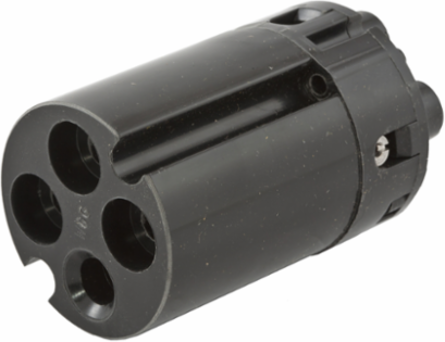

Hubbell Wiring Device-Kellems IN460CF Industrial Grade Female Replacement Interior for 60A 4-Wire, Watertight
Hubbell Wiring Device-Kellems IN460CF Industrial Grade Female Replacement Interior for 60A 4-Wire, Watertight
- MPN: IN460CF
- UPC: 783585420424
- PPN: HBL-IN460CF
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$480.26/ EA
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Replacement Interior, For 60A 4-Wire, Furnished with Screws, Black Thermoset Polyester
Features
- Sequential contact engagement
- Multi-Contact Spring to minimize temperature rise
- Watertight
Specifications
Specifications
- Country of Origin
- Puerto Rico
- Width
- 3.250 in
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V-0 classification;Environmental - Ingress Protection - IP67 Suitability;Environmental - Operating Temperatures - Max. Continuous:75°C;Min. Continuous:-40°C w/o impact;Mechanical - Impact Resistance - In accordance with UL746C;Mechanical - Product Identification - Ratings are a part of the external label and molded into the receptacle mount;Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions
- Color
- Black
- NEMA Rating
- Non-NEMA
- Number of Wires
- 4-Wire
- Standard
- UL Listed
- Voltage Rating
- 125/250 VAC
- General Literature Asset 1 Display Text
- IEC Pin & Sleeve Devices
- General Literature Asset 3 Display Text
- PULP & PAPER SOLUTIONS
- Display Size
- Standard Sized Product
- Number Of Poles
- 3-Pole
- Style
- For Receptacles/Connectors
- Description - Invoice
- PS, IEC, REP INT, 4W, 60A 125/250V, FEM
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Series
- Accessories
- BOX SIZE
- 3.995x17.995x7.495 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585420424
- Each - Pack Description
- Each
Current / Amperage Rating60 A
Industry Standard(s)UL Listed
Amperage Rating60 A
Environmental ConditionsWatertight When Installed
Number of Poles3-Pole
Special FeaturesWatertight
TypeReplacement Interior
Voltage Rating Description125/250 VAC
General Literature Asset 2 Display TextPulp & Paper Solutions
ConnectivityPressure Terminal Screws
Nema RatingNon-NEMA
Number Of Wires4-Wire
Class CodeA12
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA12A180
MaterialThermoset
Base Unit of MeasureEA
Carton - Gross Weight per Pack7.45 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
