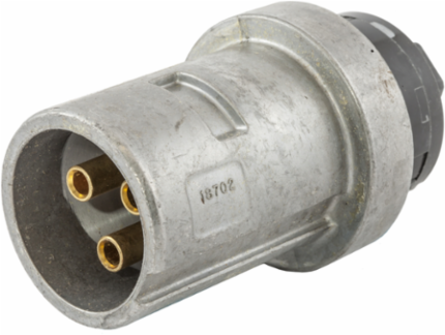

Hubbell Wiring Device-Kellems IN460MS1 Industrial Grade 60A Male Replacement Interior, 4-Wire, Watertight
- MPN: IN460MS1
- UPC: 783585324067
- PPN: HBL-IN460MS1
- UNSPSC: 39121402
CAD
$486.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Heavy Duty Products, Insulgrip Pin and Sleeve Devices, Industrial Grade, Male, Replacement Interior, For 60A 4- Wire Style 1, Furnished with Screws, Black Thermoset Polyester
Features
- Molded thermoset polyester contact carrier
- Shroud protects contact sleeves from deforming due to physical abuse
- Watertight
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Width | 3.250 in |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V-0 classification;Environmental - Ingress Protection - IP67 Suitability;Environmental - Operating Temperatures - Maximum Continuous: 75° C;Minimum -40° C w/o impact;Mechanical - Impact Resistance - In accordance with UL746C;Mechanical - Product Identification - Identification and ratings are a part of the external label and molded into the receptacle mount;Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions |
| Cord Type | All Portable |
| NEMA Rating | Non-NEMA |
| Number of Wires | 4-Wire |
| Standard | UL Listed |
| Voltage Rating | 600/250V AC/DC V |
| General Literature Asset 1 Display Text | Pulp & Paper Solutions |
| Connectivity | Pressure Terminal Screws |
| Nema Rating | Non-NEMA |
| Number Of Wires | 4-Wire |
| Class Code | A12 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A12A200 |
| Material | Composite |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 7.2 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 5 EA |
| Lowest Level UOM | Each |
| Current / Amperage Rating | 60 A |
|---|---|
| Industry Standard(s) | UL Listed |
| Amperage Rating | 60 A |
| Environmental Conditions | Watertight |
| Number of Poles | 3-Pole |
| Special Features | Watertight |
| Type | Replacment Interior |
| Voltage Rating Description | 600/250V AC/DC |
| General Literature Asset 2 Display Text | PULP & PAPER SOLUTIONS |
| Display Size | Standard Sized |
| Number Of Poles | 3-Pole |
| Style | For Plugs, Style 1 |
| Description - Invoice | PS, INS, REPL, INTERIOR, MALE 4W, 60A S1 |
| Harmonization Code | 8536694020 |
| MSDS Flag | No |
| Material - Mounting Hardware | Cord Mounted |
| Series | Accessories |
| BOX SIZE | 4.400x18.000x7.600 (in) |
| Carton - Number of Sub Packs | 5 |
| Carton - SCC-14 Next Lower Level Sub Pack | 783585324067 |
| Each - Pack Description | Each |
| NAICS Code | 335931A104 |
