Hubbell Wiring Device-Kellems

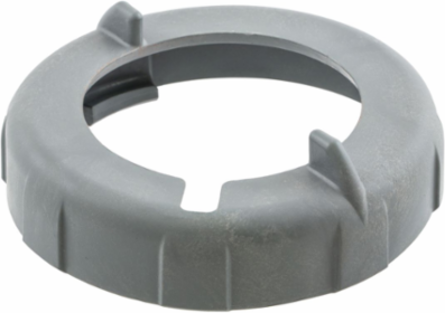

Hubbell Wiring Device-Kellems LR60 Industrial Grade Locking Ring Kit for 60A IEC Devices, Watertight

Industrial Grade Locking Ring Kit for 60A IEC Devices, Watertight
  • MPN: LR60
  • UPC: 783585370613
  • PPN: HBL-LR60
  • UNSPSC: 39121402

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$44.23/ EA

Description

Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Replacement Parts, Locking Ring Kit, For 60A All Wire, Gray, Non-Metallic

Features

  • Industrial Grade
  • Replacement Parts
  • Locking Ring Kit
  • Watertight

Specifications

Specifications

Country of Origin
United States
Industry Standard(s)
UL Listed
Standards - RoHS Compliance Status
CM
Cord Type
All Portable
NEMA Rating
Non-NEMA
Standard
UL Listed
General Literature Asset 1 Display Text
IEC Pin & Sleeve Devices
General Literature Asset 3 Display Text
PULP & PAPER SOLUTIONS
Display Size
Standard Sized
Style
Fits all 60 and 63A
Description - Invoice
PS, IEC, REPL, LOCK-RING, ALL, 60A
Harmonization Code
3926909989
MSDS Flag
No
Material - Mounting Hardware
Cord Mounted
Series
Accessories
BOX SIZE
5.900x11.600x5.700 (in)
Carton - Number of Sub Packs
10
Carton - SCC-14 Next Lower Level Sub Pack
783585370613
Case Weight
2.050 lb.
Lowest Level UOM
Each
Pallet Height
47.200 in
Pallet Weight
475.600 lb.
Width5.060 in
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V-0 classification;Environmental - Ingress Protection - IP67 Suitability;Environmental - Operating Temperatures - Maximum Continuous: 75° C;Minimum Continuous: -40° C w/o impact;Mechanical - Impact Resistance - In accordance with UL746C;Mechanical - Product Identification - Identification and ratings are a part of the external label and molded into the receptacle mount;Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions
ApplicationAll 60 and 63 Amp
Environmental ConditionsWatertight
Special FeaturesWatertight
TypeLocking Ring
General Literature Asset 2 Display TextPulp & Paper Solutions
ConnectivityPressure Terminal Screws
Nema RatingNon-NEMA
Class CodeA12
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA12A180
MaterialComposite
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585370612
Pallet Length48.000 in
Pallet Width40.000 in

Certifications

EU RoHS Indicator
Yes
