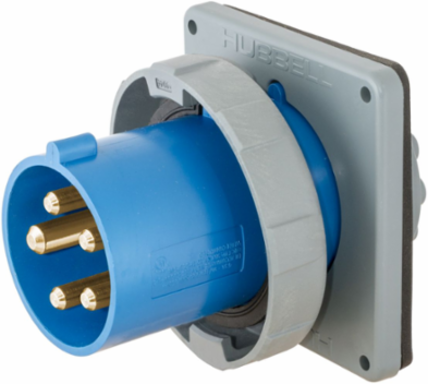

Hubbell Wiring Device-Kellems HBL5100B9W IEC Pin and Sleeve Male Flanged Inlet, 100A, Watertight, 4-Pole, 5-Wire
- MPN: HBL5100B9W
- UPC: 783585405032
- PPN: HBL-HBL5100B9W
- UNSPSC: 39121406
CAD
$1481.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty IEC Pin and Sleeve Industrial Grade Male Flanged Inlet, 100A 3-Phase Wye 120/208V AC, 4-Pole 5-Wire Grounding, Terminal Screws, Watertight
Features
- Solid one-piece pins for reliable electrical contact
- Gasketed sealing ring provides watertight seal
- Raised collar surrounds each phase pin
- Watertight
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 6.400 in
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstand 3000V AC;Electrical - Max. Working Voltage - 600V RMS;Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17;Environmental - Ingress Protection - IP67 Suitability;Environmental - Moisture Resistance - Watertight per IEC 60309-1;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum - 40°C w/o impact;Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682;Mechanical - Product Identification - Ratings are a permanent part of the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
- Application
- High Ampacity Watertight Connections
- Dielectric Strength
- Withstands 3000V Minimum in
- Insulation
- Insulated Body
- Number of Poles
- 4-Pole
- Phase
- Three Phase
- Standard
- CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146032
- Type
- Watertight Inlet
- Wattage
- 20800
- Voltage Rating Description
- 3 Phase Y 120/208 VAC
- General Literature Asset 1 Display Text
- Dual-Certified IEC Pin & Sleeve Devices
- General Literature Asset 3 Display Text
- Advantage™ Series Switch-Rated IEC Pin & Sleeve Devices
- Display Size
- Standard Sized Product
- Number Of Poles
- 4-Pole
- Style
- Standard Service
- Description - Invoice
- IEC,INLET,4P5W,100/125A 120/208V,4X/69K
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Sub Class Code
- A12A180
- Current Rating
- 100 A
- Series
- HBL Heavy Duty
- BOX SIZE
- 8.000x19.500x12.400 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585405032
- Case Weight
- 22.150 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 48.000 in
- Pallet Weight
- 930.300 lb.
- NAICS Code
- 335931A104
Current / Amperage Rating100 A
Industry Standard(s)CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146032
Amperage Rating100 A
ColorBlue
Environmental ConditionsWatertight
NEMA RatingNon-NEMA
Number of Wires5-Wire
Special FeaturesWatertight
Temperature RatingMaximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
Voltage Rating3 Phase Y 120/208 VAC
Wire Size#3 AWG to #1/0 AWG
Engineering Drawing 1 Display TextHBL5100B9W AutoCAD Drawing
General Literature Asset 2 Display TextIEC Pin & Sleeve Devices
ConnectivityPressure Terminal Screws
Nema RatingNon-NEMA
Number Of Wires5-Wire
Class CodeA12
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number5100B9W
Material - Mounting HardwareScrew Mounting
MaterialThermoplastic
Base Unit of MeasureEA
Carton - Gross Weight per Pack20.650 lb.
Carton - Pack DescriptionCarton
Carton - Total Units6 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585405031
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
