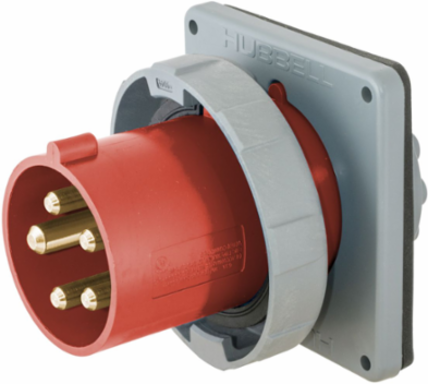

Hubbell Wiring Device-Kellems HBL530B7W Heavy Duty Male Flanged Inlet, 30A 3-Phase Wye, Watertight
Hubbell Wiring Device-Kellems HBL530B7W Heavy Duty Male Flanged Inlet, 30A 3-Phase Wye, Watertight
- MPN: HBL530B7W
- UPC: 783585405407
- PPN: HBL-HBL530B7W
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$674.00/ EA
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Male, Flanged Inlet, 30A 3-Phase Wye 277/480V AC, 4-Pole 5-Wire Grounding, Terminal Screws, Red, Watertight
Features
- Rugged one-piece housing
- Thermoset polyester contact carrier
- Solid one-piece pins for reliable electrical contact
- Watertight
Specifications
Specifications
- Country of Origin
- US
- Width
- 5.600 in
- Industry Standard(s)
- CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146032
- Amperage Rating
- 30 A
- Color
- Red
- Environmental Conditions
- Watertight
- NEMA Rating
- Non-NEMA
- Number of Wires
- 5-Wire
- Special Features
- Watertight
- Temperature Rating
- Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
- Voltage Rating
- 3 Phase Y 277/480 VAC
- Wire Size
- #12 AWG to #10 AWG
- Connectivity
- Pressure Terminal Screws
- Nema Rating
- Non-NEMA
- Number Of Wires
- 5-Wire
- Class Code
- A12
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 530B7W
- Material - Mounting Hardware
- Screw Mounting
- Material
- Thermoplastic
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 12.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Each - Pack Description
- Each
Current / Amperage Rating30 A
Each - Width5.600 in
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - 3000V AC;Electrical - Max. Working Voltage - 600V RMS;Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17;Environmental - Ingress Protection - IP67 Suitability;Environmental - Moisture Resistance - Watertight per IEC 60309-1.;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum - 40°C w/o impact;Mechanical - Cord Grip Retention - Per CSA C22.2 No.182.1 /UL1682;Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
ApplicationHigh Ampacity Watertight Connections
Dielectric StrengthWithstands 3000V Minimum in
InsulationInsulated Body
Number of Poles4-Pole
PhaseThree Phase
StandardCSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146032
TypeWatertight Inlet
Wattage14400
Voltage Rating Description3 Phase Y 277/480 VAC
Display SizeStandard Sized Product
Number Of Poles4-Pole
StyleStandard Service
Description - InvoicePS, IEC, INLET, 4P5W, 30A 277/480V, W/T
Harmonization Code8536699999
MSDS FlagNo
Sub Class CodeA12A180
Current Rating30 A
SeriesHBL Heavy Duty
BOX SIZE8.100x24.400x11.600 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585405407
Case Weight13.200 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
