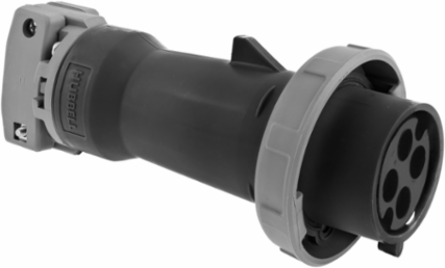

Hubbell Wiring Device-Kellems HBL460P5WR Heavy Duty Watertight Male Plug, 60A 3-Phase 600V, 3-Pole 4-Wire
- MPN: HBL460P5WR
- UPC: 783585012735
- PPN: HBL-HBL460P5WR
- UNSPSC: 39121402
CAD
$888.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Male, Plug, 60A 3-Phase Delta 600V AC, 3-Pole 4-Wire Grounding, Terminal Screws, Black, Watertight- Reversed Service
Features
- Gasketed sealing ring provides watertight seal
- Heavy duty external cord grips
- Watertight
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 5.750 in
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC Min;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - HB or Better per UL 94 or CSA C22.2 No. 0.17;Environmental - Ingress Protection - IP67 Suitability;Environmental - Moisture Resistance - Watertight per IEC 60309-1;Environmental - Operating Temperature - Maximum Continuous 75°C;Minimum - 40°C w/o impact;Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682;Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing.;Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
- Color
- Black
- Environmental Conditions
- Watertight
- Number of Poles
- 3-Pole
- Phase
- Three Phase
- Standard
- CSA Standard C22.2 No. 182.1;UL Classified to IEC60309-1;UL Listed, File E146032
- Voltage Rating
- 3 Phase 600 VAC
- Voltage Rating Description
- 3 Phase 600 VAC
- General Literature Asset 1 Display Text
- IEC Pin & Sleeve Devices
- General Literature Asset 3 Display Text
- PULP & PAPER SOLUTIONS
- Display Size
- Standard Sized
- Number Of Poles
- 3-Pole
- Style
- Reverse Service
- Description - Invoice
- PS, IEC, PLUG, 3P4W, 60A 3P 600V, REV
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Material - Mounting Hardware
- Cord Mounted
- Material
- Composite
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 26.500 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Lowest Level UOM
- Each
Current / Amperage Rating60 A
Industry Standard(s)CSA Standard C22.2 No. 182.1;UL Classified to IEC60309-1;UL Listed, File E146032
Amperage Rating60 A
Cord TypeAll Portable
NEMA RatingNon-NEMA
Number of Wires4-Wire
Special FeaturesWatertight
TypeWatertight Mating Plug
Wire Size#8 AWG to #2 AWG
Engineering Drawing 1 Display TextHBL460P5WR AutoCAD Drawing
General Literature Asset 2 Display TextPulp & Paper Solutions
ConnectivityPressure Terminal Screws
Nema RatingNon-NEMA
Number Of Wires4-Wire
Class CodeA12
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA12A180
Current Rating60 A
SeriesNon-Fused
BOX SIZE11.575x24.625x12.125 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585012735
Each - Pack DescriptionEach
NAICS Code335931A104
