Hubbell Wiring Device-Kellems

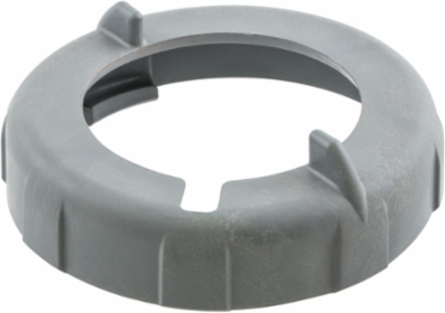

Hubbell Wiring Device-Kellems LR320 Gray Non-Metallic Locking Ring Kit, 20A 3-Wire, Watertight

Gray Non-Metallic Locking Ring Kit, 20A 3-Wire, Watertight
  • MPN: LR320
  • UPC: 783585370514
  • PPN: HBL-LR320
  • UNSPSC: 39121402

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$29.43/ EA

Description

Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Replacement Parts, Locking Ring Kit, For 20A 3-Wire, Gray, Non-Metallic

Features

  • Industrial Grade
  • Replacement Parts
  • Locking Ring Kit
  • Watertight

Specifications

Specifications

Country of Origin
United States
Industry Standard(s)
UL Listed
Standards - RoHS Compliance Status
CM
Cord Type
All Portable
NEMA Rating
Non-NEMA
Standard
UL Listed
General Literature Asset 1 Display Text
IEC Pin & Sleeve Devices
General Literature Asset 3 Display Text
PULP & PAPER SOLUTIONS
Display Size
Standard Sized
Style
Fits all 16 and 20A, 3 wire
Description - Invoice
PS, IEC, REPL, LOCK-RING, 3W, 20A
Harmonization Code
3926909989
MSDS Flag
No
Material - Mounting Hardware
Cord Mounted
Series
Accessories
BOX SIZE
5.800x12.400x5.700 (in)
Carton - Number of Sub Packs
10
Carton - SCC-14 Next Lower Level Sub Pack
783585370514
Case Weight
1.000 lb.
Lowest Level UOM
Each
Pallet Height
46.400 in
Pallet Weight
208.000 lb.
Width6.250 in
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V-0 classification;Environmental - Ingress Protection - IP67 Suitability;Environmental - Operating Temperatures - Maximum Continuous: 75° C;Minimum Continuous: -40° C w/o impact;Mechanical - Impact Resistance - In accordance with UL746C;Mechanical - Product Identification - Identification and ratings are a part of the external label and molded into the receptacle mount;Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions
Application3-Wire 16 and 20 Amp
Environmental ConditionsWatertight
Special FeaturesWatertight
TypeLocking Ring
General Literature Asset 2 Display TextPulp & Paper Solutions
ConnectivityPressure Terminal Screws
Nema RatingNon-NEMA
Class CodeA12
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA12A180
MaterialComposite
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.1 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585370513
Pallet Length48.000 in
Pallet Width40.000 in

Certifications

EU RoHS Indicator
Yes

Downloads
