Hubbell Wiring Device-Kellems HBLSS45 Twist-Lock Safety Shroud Kit for 4 & 5-Wire Plugs, 2.21 Inch
- MPN: HBLSS45
- UPC: 783585174150
- PPN: HBL-HBLSS45
- UNSPSC: 39121402
CAD
$27.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

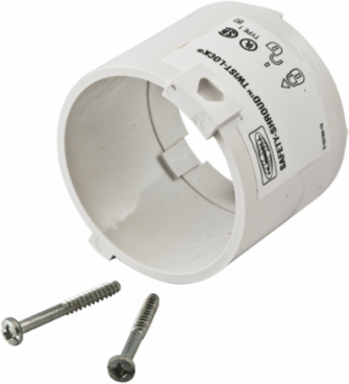

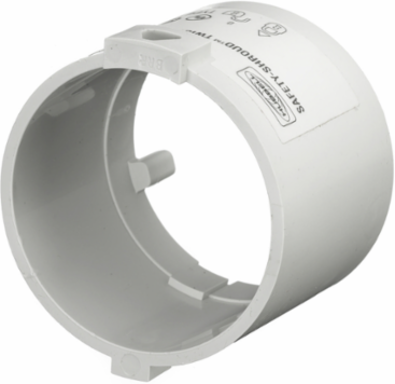

Locking Devices, Twist-Lock®, Safety-Shroud®, Shroud Kit for Plugs, 4 and 5-Wire, White
Features
- Add-A-Shroud® devices allow conversion of existing 20A and 30A 3 to 5 wire Hubbell Insulgrip® Twist-Lock® devices to a Safety-Shroud® Twist-Lock® plug
- The Safety-Shroud® Twist-Lock® plug permits engagement with the Hubbell Mechanical Interlock Enclosure which virtually prevents make and break under load
- These devices provide a convenient and cost-effective way to convert existing Hubbell Insulgrip® Twist-Lock® plugs to Safety-Shroud® Twist-Lock® plugs
- Accessory
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Height | 1.65 in |
| Performance | Environmental - Flammability - HB or better;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) |
| Color | White |
| Number of Poles | 3-Pole |
| Size | 2.21 in x 2.21 in x 1.65 in |
| Type | Accessory |
| Width | 2.21 in |
| Number Of Poles | 3-Pole |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Description - Invoice | S-SHROUD KIT, FOR 4&5W LKG PLUGS |
| Harmonization Code | 3926909989 |
| MSDS Flag | No |
| Material | Nylon |
| BOX SIZE | 6.000x12.500x5.600 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 783585174150 |
| Case Weight | 1.550 lb. |
| Lowest Level UOM | Each |
| Dimensions | 2.21 in x 2.21 in x 1.65 in |
|---|---|
| Length | 2.21 in |
| Standards - RoHS Compliance Status | CM |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Number of Wires | 4-Wire |
| Special Features | Accessory |
| Weight | 0.15 lb. |
| Display Size | Standard Sized |
| Number Of Wires | 4-Wire |
| Class Code | A08 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A08A120 |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 1.650 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 EA |
| Each - Pack Description | Each |
| NAICS Code | 3261992191 |
