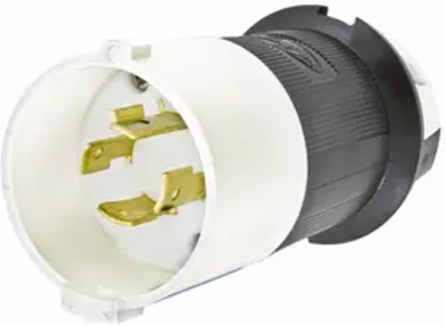

Hubbell Wiring Device-Kellems HBL2421ST EdgeConnectTM Twist-Lock Male Insulgrip Plug, 20A 3-Phase 250V AC, 3-Pole 4-Wire
- MPN: HBL2421ST
- UPC: 783585681580
- PPN: HBL-HBL2421ST
- UNSPSC: 39121402
CAD
$58.62
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Locking Devices, EdgeConnect™ Twist-Lock®, Industrial, Male Insulgrip® Plug, 20A 3-Phase 250V AC, 3-Pole 4-Wire Grounding, L15-20P, Spring Terminal, Black and White Nylon.
Features
- Faster termination time
- No need for screwdriver and torque wrench
- Spring Termination eliminates strand relaxation
- Funnel shaped wire entry for ease of termination
- Superior cord grip design protects terminations from excess strain
- EdgeConnectTM Technology, Screwless Termination
Documentation & Downloads
Specifications
Additional
| Current Rating | 20 A |
|---|---|
| Number of Poles | 3 |
| Dielectric Voltage | 3,000 V minimum |
| Termination Type | Spring Terminal |
| Weight | 0.25 lbs |
| Operating Temperature Range | -40 C to 75 C |
| Flammability | HB or better per UL94/CSA 22.2 No.0.17 |
| Series | EdgeConnectTM Twist-Lock Series |
| Sub Class Code | A08A110 |
| Voltage | 3-Phase 250 VAC |
|---|---|
| Number of Wires | 4 |
| Cord Diameter | 0.350 - 1.150 in |
| Terminal Accommodation | #14 AWG - #8 AWG stranded copper wire |
| Material | Black and White Nylon, Copper Alloy, Spring Steel, Zinc Plated |
| Moisture Resistance | IP20 |
| Country of Origin | China |
| Class Code | A08 |
| Harmonization Code | 8536694020 |
