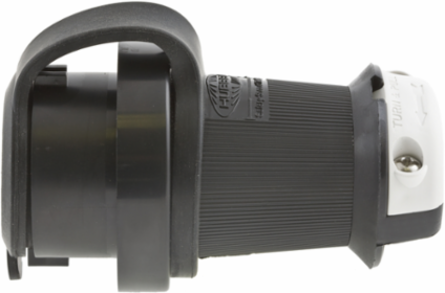

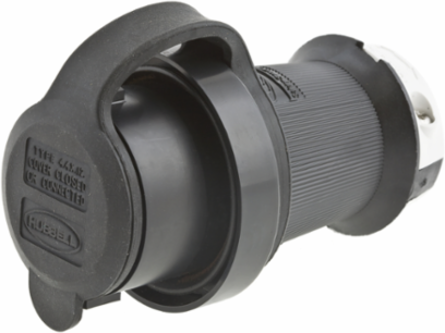

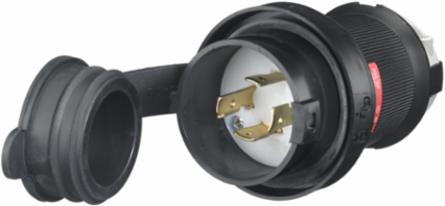

Hubbell Wiring Device-Kellems HBL2431SW Locking Male Plug, L16-20P, 20A, 3-Phase 480V AC, 4-Wire, Watertight
- MPN: HBL2431SW
- UPC: 783585231440
- PPN: HBL-HBL2431SW
- UNSPSC: 39121402
CAD
$129.31
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Watertight Safety-Shroud®, Male Plug, 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, NEMA L16-20P, Screw Terminal, Black PBT housing, White PBT clamps.
Features
- Impact resistant shroud protects blades against bending and breaking.
- Reduces exposure to arcing when connecting or disconnecting under load.
- Superior cord grip design protects terminations from excess strain.
- Standard Product
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- HBL2431SW AutoCAD Drawing
- General Literature Asset 2 Display Text
- Entertainment Product Solution Guide
- Country of Origin
- United States
- Dimensions
- 2.94 in x 2.94 in x 4.40 in
- Horsepower - Maximum
- 5
- Length
- 2.94 in
- Standards - RoHS Compliance Status
- CM
- Application
- Extra Heavy Duty Industrial
- Environmental Conditions
- Watertight
- Number of Poles
- 3-Pole
- Phase
- Three Phase
- Special Features
- Standard Product
- Type
- Plugs
- Wire Size
- #16 AWG to #8 AWG
- Weight
- 0.70 lb.
- Connectivity
- Pressure Terminal Screws
- Display Size
- Standard Sized
- Number Of Poles
- 3-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Description - Invoice
- LKG WT S/SHRD PLG, 20A3P 480V, L16-20P
- Harmonization Code
- 8536699902
- MSDS Flag
- No
- Cable Range
- 0.350 - 1.150 in
- Material - Mounting Hardware
- Cord Mounted
- Current Rating
- 20 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 7.500 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585231449
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
General Literature Asset 1 Display TextCircuit-Lock® Rounded Sloped Top Motor Disconnects
General Literature Asset 3 Display TextWiring Device Solutions for Strategic Manufacturing Facilities
Current / Amperage Rating20 A
Height4.40 in
Industry Standard(s)UL Listed, CSA Certified To Type 4, 4X And Type 12
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V0 per UL94 or CSA 22.2 No 0.17;Environmental - Moisture Resistance - Type 4, 4X, 12, IP66 suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amperage Rating20 A
Cord TypeAll Listed Portables
NEMA RatingL16-20P
Number of Wires4-Wire
Size2.94 in x 2.94 in x 4.40 in
StandardUL Listed, CSA Certified To Type 4, 4X And Type 12
Voltage Rating480 V
Voltage Rating Description3 Phase 480 VAC
Width2.94 in
Dielectric StrengthWithstands 2,000V minimum
Nema RatingL16-20P
Number Of Wires4-Wire
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA08A130
Cord Range0.350"-1.150" (9-29)
Cord Diameter0.350-1.150 in
MaterialComposite
BOX SIZE5.800x18.900x8.200 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585231440
Case Weight5.415 lb.
Lowest Level UOMEach
Pallet Height46.400 in
Pallet Weight878.400 lb.
NAICS Code335931A102
Certifications
- EU RoHS Indicator
- Yes
