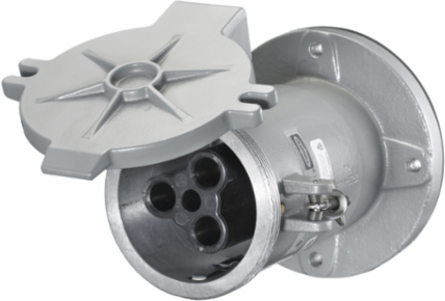

Hubbell Wiring Device-Kellems HBL4200RS1W Insulgrip Female Receptacle 200A 3-Pole 4-Wire Watertight

MPN: HBL4200RS1W
UPC: 783585011448
PPN: HBL-HBL4200RS1W
UNSPSC: 39121406

Spec sheet

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$2250.23/ EA

Qty:

Loading add to cart quantity...

Description

Heavy Duty Insulgrip Pin and Sleeve Devices, Industrial Grade Female Receptacle, 200A 600V AC, 3-Pole 4-Wire Grounding Style 1,Terminal Screws

Features

Watertight neoprene sealing glands for reliable seal
Spring-Loaded, gasketed cover for dust-tight seal
Pin chamber confines arcing within the interior chamber
Watertight

Specifications

Amperage: 200 A

Number of Poles: 3-Pole

Style: Standard Service, Style 1

Connectivity: Pressure Terminal Screws

Seal Type: Neoprene Gasket, O-Rings

Operating Temperature Range: -40°C to 75°C

Flammability Rating: UL 94V-0, CSA C22.2 No. 0.17

Country of Origin: US

Voltage600 VAC / 250 VDC

Number of Wires4-Wire

Dimensions9.5 in width

MaterialThermoplastic

ApplicationMetallic with Nylon Shroud

ComplianceCSA C22.2 No. 182.1; UL Listed and CSA Certified Type 4X; UL 1682

Moisture ResistanceType 3, 4, 4X per UL 50E and CSA 22.2 No. 94

Downloads

Video
