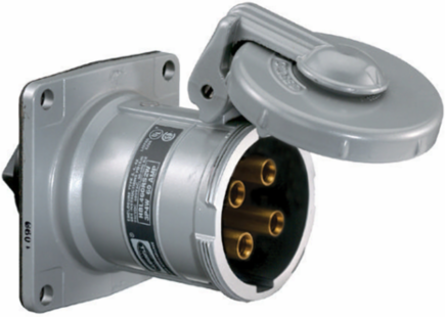

Hubbell Wiring Device-Kellems HBL530RS1WR Industrial Grade Watertight Receptacle 30A 600V AC 4-Pole
Hubbell Wiring Device-Kellems HBL530RS1WR Industrial Grade Watertight Receptacle 30A 600V AC 4-Pole
- MPN: HBL530RS1WR
- UPC: 783585012544
- PPN: HBL-HBL530RS1WR
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$502.77/ EA
Description
Heavy Duty Products, Insulgrip Pin and Sleeve Devices, Industrial Grade, Female, Receptacle, 30A 600V AC, 3- Pole 4-Wire Grounding Style 1, Terminal Screws Gray and Black
Features
- Watertight neoprene sealing glands for reliable seal
- Spring-Loaded, gasketed cover for dust-tight seal
- Pin chamber confines arcing within the interior chamber
- Watertight
Specifications
Specifications
- Country of Origin
- United States
- Width
- 4.400 in
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability (Enclosure) - UL 94V-0 and CSA C22.2 No. 0.17;Environmental - Moisture Resistance - Type 3, 4, 4X per UL 50E and CSA 22.2, No. 94;Environmental - Operating Temperatures - Max. Continuous 75°C;Min. -40°C w/o impact -25° with impact;Mechanical - Impact Resistance - Per CSA C22.2, No. 182.1, UL 1682;Mechanical - Product Identification - Identification and ratings are permanently fastened to the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with UL 1686(1, 2, 3, Green)
- Amperage Rating
- 30 A
- Environmental Conditions
- Watertight
- Number of Poles
- 4-Pole
- Phase
- Three Phase
- Standard
- CSA Certified to CSA Spec. C22.2 No. 182.1;UL Listed and CSA Certified Type 4X;UL Standard 1682
- Voltage Rating
- 600 VAC/250 VDC
- Wire Size
- #12 AWG to #8 AWG
- General Literature Asset 1 Display Text
- Pulp & Paper Solutions
- Connectivity
- Pressure Terminal Screws
- Nema Rating
- Non-NEMA
- Number Of Wires
- 5-Wire
- Class Code
- A12
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A12A200
- Current Rating
- 30 A
- Series
- UL 1686 Class 1 Insulgrip®
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585012544
- Lowest Level UOM
- Each
Current / Amperage Rating30 A
Industry Standard(s)CSA Certified to CSA Spec. C22.2 No. 182.1;UL Listed and CSA Certified Type 4X;UL Standard 1682
Standards - RoHS Compliance StatusCM
ApplicationMetallic with Nylon Shroud
NEMA RatingNon-NEMA
Number of Wires5-Wire
Special FeaturesWatertight
TypeWatertight Receptacle
Wattage18000
Voltage Rating Description600V AC/250V DC
General Literature Asset 2 Display TextPULP & PAPER SOLUTIONS
Display SizeStandard Sized Product
Number Of Poles4-Pole
StyleReversed Service, Style 1
Description - InvoicePS, INS, RECP, 4P5W, 30A 600V, S1 REV
Harmonization Code8536694020
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
MaterialThermoplastic
Base Unit of MeasureEA
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Yes
