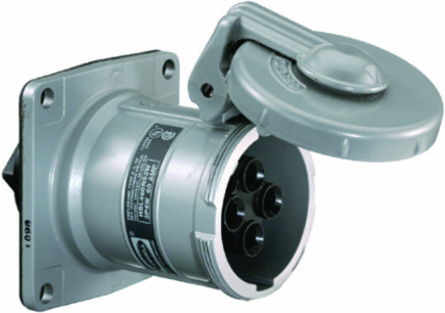

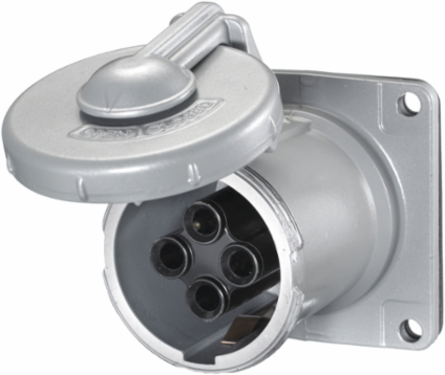

Hubbell Wiring Device-Kellems HBL460RS2W Insulgrip 60A Watertight Female Receptacle, 3-Pole 4-Wire
- MPN: HBL460RS2W
- UPC: 783585010649
- PPN: HBL-HBL460RS2W
- UNSPSC: 39121406
CAD
$941.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Heavy Duty Insulgrip Pin and Sleeve Devices, Industrial Grade Female Receptacle, 60A 600V AC, 3-Pole 4-Wire Grounding Style2,Terminal Screws
Features
- Watertight neoprene sealing glands for reliable seal
- Spring-Loaded, gasketed cover for dust-tight seal
- Pin chamber confines arcing within the interior chamber
- Watertight
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Width | 5.300 in |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability (Enclosure) - UL 94V-0 and CSA C22.2 No. 0.17;Environmental - Moisture Resistance - Type 3, 4, 4X per UL 50E and CSA 22.2, No. 94;Environmental - Operating Temperatures - Max. Continuous 75°C;Min. -40°C w/o impact -25° with impact;Mechanical - Impact Resistance - Per CSA C22.2, No. 182.1, UL 1682;Mechanical - Product Identification - Identification and ratings are permanently fastened to the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with UL 1686(1, 2, 3, Green) |
| Amperage Rating | 60 A |
| Environmental Conditions | Watertight |
| Number of Poles | 3-Pole |
| Phase | Single/Three |
| Standard | CSA Certified to CSA Spec. C22.2 No. 182.1;UL Listed and CSA Certified Type 4X;UL Standard 1682 |
| Voltage Rating | 600 VAC/250 VDC |
| Wire Size | #8 AWG to #2 AWG |
| Weight | 2.36 lb. |
| General Literature Asset 2 Display Text | PULP & PAPER SOLUTIONS |
| Display Size | Standard Sized Product |
| Number Of Poles | 3-Pole |
| Style | Standard Service, Style 2 |
| Description - Invoice | PS, INS, RECP, 3P4W, 60A 600V, S2 |
| Harmonization Code | 8536694020 |
| MSDS Flag | No |
| Material - Mounting Hardware | Screw Mounting |
| Material | Thermoplastic |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 26.050 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 |
| Each - Pack Description | Each |
| Pallet Height | 38.000 in |
| Pallet Weight | 508.900 lb. |
| NAICS Code | 335931A104 |
| Current / Amperage Rating | 60 A |
|---|---|
| Industry Standard(s) | CSA Certified to CSA Spec. C22.2 No. 182.1;UL Listed and CSA Certified Type 4X;UL Standard 1682 |
| Standards - RoHS Compliance Status | CM |
| Application | Metallic with Nylon Shroud |
| NEMA Rating | Non-NEMA |
| Number of Wires | 4-Wire |
| Special Features | Watertight |
| Type | Watertight Receptacle |
| Wattage | 36000 W |
| Voltage Rating Description | 600V AC/250V DC |
| General Literature Asset 1 Display Text | Pulp & Paper Solutions |
| Connectivity | Pressure Terminal Screws |
| Nema Rating | Non-NEMA |
| Number Of Wires | 4-Wire |
| Class Code | A12 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A12A200 |
| Current Rating | 60 A |
| Series | UL 1686 Class 1 Insulgrip® Series |
| BOX SIZE | 16.500x16.000x12.200 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585010649 |
| Case Weight | 25.450 lb. |
| Lowest Level UOM | Each |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
