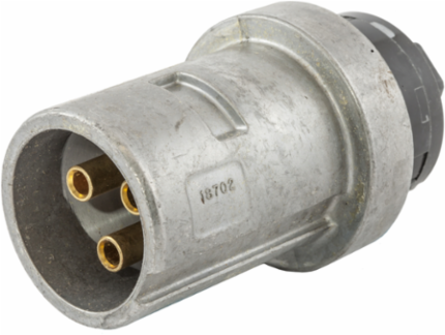

Hubbell Wiring Device-Kellems IN530MS1 Insulgrip Male Replacement Interior, 30A, 5-Wire, Watertight
- MPN: IN530MS1
- UPC: 783585324043
- PPN: HBL-IN530MS1
- UNSPSC: 39121402
CAD
$386.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty Products, Insulgrip Pin and Sleeve Devices, Industrial Grade, Male, Replacement Interior, For 30A 5- Wire Style 1, Furnished with Screws, Black Thermoset Polyester
Features
- Molded thermoset polyester contact carrier
- Shroud protects contact sleeves from deforming due to physical abuse
- Watertight
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 2.418 in
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V-0 classification;Environmental - Ingress Protection - IP67 Suitability;Environmental - Operating Temperatures - Maximum Continuous: 75° C;Minimum -40° C w/o impact;Mechanical - Impact Resistance - In accordance with UL746C;Mechanical - Product Identification - Identification and ratings are a part of the external label and molded into the receptacle mount;Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions
- Cord Type
- All Portable
- NEMA Rating
- Non-NEMA
- Number of Wires
- 5-Wire
- Standard
- UL Listed
- Voltage Rating
- 600/250V AC/DC V
- General Literature Asset 1 Display Text
- Pulp & Paper Solutions
- Connectivity
- Pressure Terminal Screws
- Nema Rating
- Non-NEMA
- Number Of Wires
- 5-Wire
- Class Code
- A12
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A12A200
- Material
- Composite
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 5.05 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Lowest Level UOM
- Each
Current / Amperage Rating30 A
Industry Standard(s)UL Listed
Amperage Rating30 A
Environmental ConditionsWatertight
Number of Poles4-Pole
Special FeaturesWatertight
TypeReplacment Interior
Voltage Rating Description600/250V AC/DC
General Literature Asset 2 Display TextPULP & PAPER SOLUTIONS
Display SizeStandard Sized
Number Of Poles4-Pole
StyleFor Plugs, Style 1
Description - InvoicePS, INS, REPL, INTERIOR, MALE S1, 30A S2
Harmonization Code8536694020
MSDS FlagNo
Material - Mounting HardwareCord Mounted
SeriesAccessories
BOX SIZE5.900x8.600x6.900 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585324043
Each - Pack DescriptionEach
NAICS Code335931A104
