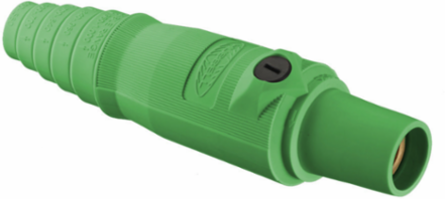

Bryant HBL300FGN Heavy Duty Female Plug, 300A 600V AC/DC, Green, 2.83 Inch Width
Bryant HBL300FGN Heavy Duty Female Plug, 300A 600V AC/DC, Green, 2.83 Inch Width
- MPN: HBL300FGN
- UPC: 783585112039
- PPN: HBL-HBL300FGN
- UNSPSC: 39121402
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$69.65/ EA
Description
Heavy Duty Products, Single Pole Devices, Industrial Grade, Female, Plug, 300A 600V AC/DC, Single Conductor, Double Set Screws, Green
Features
- Extra Long non-conductive inner sleeve
- Turn and Lock Symbol aids in the mating of devices
- Easily Identifiable Cable with cut off points for secure fit
Specifications
Specifications
- Country of Origin
- CN
- Width
- 2.830 in
- Industry Standard(s)
- National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
- Amperage Rating
- 300 A
- Standard
- National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
- Voltage Rating Description
- 600V AC/DC
- Description - Invoice
- SINGLEPOLE, 300A FEMALE PLUG, GREEN
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Series
- 16 Series
- BOX SIZE
- 9.300x14.900x12.600 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585112039
- Case - Total Units
- 100 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585112038
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Current / Amperage Rating300 A
Each - Width2.830 in
PerformanceElectrical - Amperage Rating - 400A Maximum;Electrical - Voltage Ratings - 600V AC Maximum;250V DC Maximum;Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17;Mechanical - Product Identification - Ratings are a permanent part of device;Mechanical - Terminal Accommodation - #6 to 2/0 AWG
ColorGreen
TypePlugs
StyleFemale
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog NumberHBL200CTGN
Base Unit of MeasureEA
Carton - Gross Weight per Pack8.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight10.518 lb.
Lowest Level UOMEach
Pallet Height46.500 in
Pallet Weight2052.500 lb.
Certifications
- EU RoHS Indicator
- Yes
