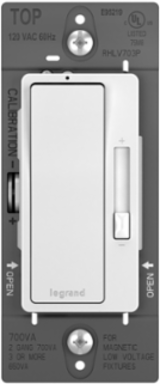

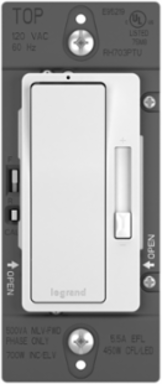

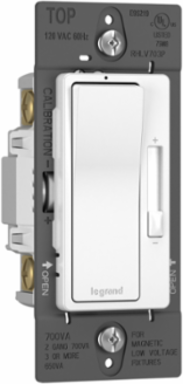

Radiant RHLV703PW radiant® 120V, 700VA, Magnetic Low-Voltage Single Pole/3-Way Dimmer, White
- MPN: RHLV703PW
- UPC: 785007053500
- PPN: P-S-RHLV703PW
- UNSPSC: 39122206
CAD
$76.67
/ EA
Available to Order from Manufacturer
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Upgrade your space with precise dimming control and exceptional style, while saving energy and extending bulb life by reducing the amount of electricity required to power the lights.Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.
Features
- Low-profile paddle switch offers smoother On/Off control, while a separate, ergonomic slider allows you to adjust light levels with precision.
- Usable in both single-pole and 3-way applications.
- Locator light illuminates when switch is off, emitting a soft glow to help you find it in the dark.
- Constant memory features returns lights to their previous level after a power failure or outage.
- Features durable, high-impact resistant thermoplastic construction.
- More color options available to fit any style, including finishes to match current hardware and lighting trends.
- Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Height | 4.25 in |
| Color | White |
| Material | Steel,Thermoplastic |
| Warranty Type | Limited Lifetime Warranty |
| Mounting Type | Wall Box |
| Number of Switches | 1.0 |
| Environmental Conditions | Humidity: Less than 95% non condensing |
| Wire Size | #14 - #10 AWG |
| Indoor/Outdoor | Indoor |
| Maximum Humidity | 95% (relative humidity, non-condensing) |
| Frequency Rating | 60 Hz |
| Features | Color Change Kit; Locator Light; Low-End Trim (Dim Range) |
| Preset | Yes |
| Dimming Compatibility | Forward Phase |
| Compatible Add-Ons | RHKIT |
| Depth | 1.25 in |
|---|---|
| Width | 1.75 in |
| Finish | Satin |
| Product Line | Pass & Seymour |
| Application Sector | Residential |
| Type | Dimmer |
| Standard | CSA Listed; cULus; UL Listed |
| Special Features | The radiant® collection is a step up from the standard with simple, classic options in wiring devices, home automation controls and screwless wall plates that complement today's homes. This dimmer is multi-location dimming with 3-Way wiring for simple installation. |
| Voltage | 120 VAC |
| Switch Type | Paddle; Slider |
| Wire Connection Type | Screw Terminals |
| Requires Neutral Wire | No |
| Number of Poles | Multi-Location; Single Pole 3-Way |
| Load Rating | 120V 700VA (MLV - Incandescent); 120V 700VA (MLV - Halogen) |
| Load Type | Halogen; Incandescent |
| Jigsaw Channel Availability | Retail; Distribution |
