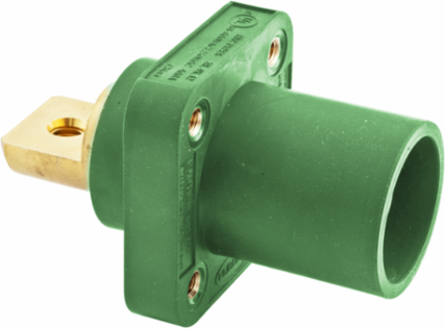

Bryant HBLMRBGN Industrial Grade 1-Pole Male Bus Receptacle, 300/400A 600V AC/DC, Green
Bryant HBLMRBGN Industrial Grade 1-Pole Male Bus Receptacle, 300/400A 600V AC/DC, Green
- MPN: HBLMRBGN
- UPC: 783585192574
- PPN: HBL-HBLMRBGN
- UNSPSC: 39121406
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$65.38/ EA
Description
Heavy Duty Products, Single Pole Devices, Industrial Grade, Male Bus Receptacle, 300/400A 600V AC/DC, Single Conductor, Green
Features
- Industrial Grade
- Male Bus Receptacle
- 300/400A 600V AC/DC
- Standard Product
Specifications
Specifications
- Country of Origin
- China
- Width
- 2.760 in
- Performance
- Electrical - Amperage Rating - 400A Maximum;Electrical - Voltage Ratings - 600V AC Maximum;250V DC Maximum;Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17;Mechanical - Product Identification - Ratings are a permanent part of device;Mechanical - Terminal Accommodation - #4 to 4/0 AWG
- Application
- High Ampacity Connections
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 1-Pole
- Special Features
- Standard Product
- Type
- Receptacle
- Wire Size
- #4 AWG to #4/0 AWG
- Connectivity
- Screw Terminals
- Nema Rating
- Non-NEMA
- Style
- Bus Bar Mount Male
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Material - Mounting Hardware
- Screw Mounting
- Material
- Thermoplastic
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 6.35 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 25 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585192573
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Current / Amperage Rating400 A
Industry Standard(s)National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
Amperage Rating400 A
ColorGreen
NEMA RatingNon-NEMA
PhaseSingle Phase
StandardNational Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
Wattage240000
Voltage Rating Description600V AC/DC
Display SizeStandard Sized Product
Number Of Poles1-Pole
Description - InvoiceSINGLEPOLE, 300/400A MALE BUS RECEP, GN
Harmonization Code8536698000
MSDS FlagNo
Current Rating400 A
Series16 Series
BOX SIZE5.200x22.400x11.600 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585192574
Case Weight16.500 lb.
Lowest Level UOMEach
Pallet Height46.800 in
Pallet Weight1039.500 lb.
Certifications
- EU RoHS Indicator
- No
