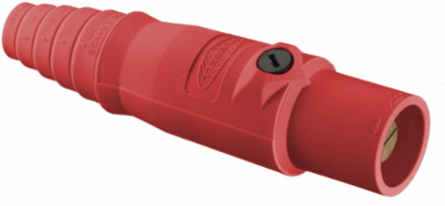

Bryant HBL300MR Heavy Duty Male Plug, 300A 600V AC/DC, Industrial Grade, Red
- MPN: HBL300MR
- UPC: 783585113036
- PPN: HBL-HBL300MR
- UNSPSC: 39121402
CAD
$73.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Heavy Duty Products, Single Pole Devices, Industrial Grade, Male, Plug, 300A 600V AC/DC, Single Conductor, Double Set Screws, Red
Features
- Insulgrip® Style Housing for Superior Gripping
- Non-Conductive Retaining Screw locks contacts in place
- Large Raised Alignment Arrow aids in the mating of devices
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Width
- 2.480 in
- Performance
- Electrical - Amperage Rating - 400A Maximum;Electrical - Voltage Ratings - 600V AC Maximum;250V DC Maximum;Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17;Mechanical - Product Identification - Ratings are a permanent part of device;Mechanical - Terminal Accommodation - #6 to 2/0 AWG
- Color
- Red
- Type
- Plugs
- Style
- Male
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- HBL200PTR
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 8.500 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 10.365 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 46.500 in
- Pallet Weight
- 2012.500 lb.
Current / Amperage Rating300 A
Industry Standard(s)National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
Amperage Rating300 A
StandardNational Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
Voltage Rating Description600V AC/DC
Description - InvoiceSINGLEPOLE, 300A MALE PLUG, RED
Harmonization Code8536698000
MSDS FlagNo
Series16 Series
BOX SIZE9.300x14.800x12.500 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585113036
Case - Total Units100 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585113035
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
