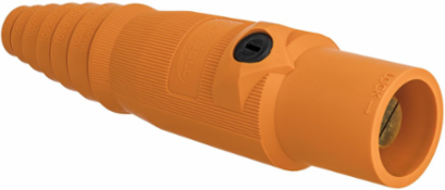

Hubbell Wiring Device-Kellems HBL400MO Industrial Grade 400A Male Plug, Orange, 600V AC/DC
- MPN: HBL400MO
- UPC: 783585112305
- PPN: HBL-HBL400MO
- UNSPSC: 39121402
CAD
$73.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty Products, Single Pole Devices, Industrial Grade, Male, Plug, 400A 600V AC/DC, Single Conductor, Double Set Screws, Orange
Features
- Insulgrip® Style Housing for Superior Gripping
- Non-Conductive Retaining Screw locks contacts in place
- Large Raised Alignment Arrow aids in the mating of devices
Documentation & Downloads
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- HBL400MO AutoCAD Drawing
- General Literature Asset 2 Display Text
- Entertainment Product Solution Guide
- Country of Origin
- China
- Width
- 2.840 in
- Performance
- Electrical - Amperage Rating - 400A Maximum;Electrical - Voltage Ratings - 600V AC Maximum;250V DC Maximum;Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17;Mechanical - Product Identification - Ratings are a permanent part of device;Mechanical - Terminal Accommodation - 2/0 to 4/0 AWG
- Color
- Orange
- Type
- Plugs
- Style
- Male
- Description - Invoice
- SINGLEPOLE, 400A MALE PLUG, ORANGE
- Harmonization Code
- 8536699902
- MSDS Flag
- No
- Series
- 16 Series
- BOX SIZE
- 9.200x14.800x12.600 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585112305
- Case - Total Units
- 100 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585112304
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
General Literature Asset 1 Display TextSingle Pole Connectors
General Literature Asset 3 Display TextPulp & Paper Solutions
Current / Amperage Rating400 A
Industry Standard(s)National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
Amperage Rating400 A
StandardNational Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
Voltage Rating Description600V AC/DC
Class CodeA12
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA12A220
Base Unit of MeasureEA
Carton - Gross Weight per Pack8.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight10.335 lb.
Lowest Level UOMEach
Pallet Height46.000 in
Pallet Weight1922.500 lb.
NAICS Code335931A104
Certifications
- EU RoHS Indicator
- Yes
