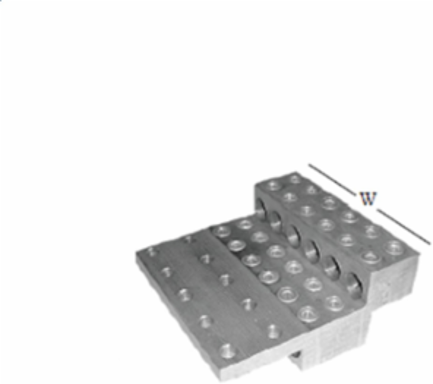

CMC DPV16-750 Heavy-duty transformer connectors
- MPN: DPV16-750
- UPC: 192663082568
- PPN: HBL-C58701146
CAD
$616.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Heavy-duty transformer connectors, Dual rated connectors for Aluminum or Copper conductors, CO-OX Oxide inhibitor is omitted
Features
- Connector fabricated from 6061-T6 aluminum alloy for conductivity and strength.
- Clear plated for low-contact resistance.
- Supplied with aluminum radial-tipped set-screws.
- All mounting holes 1.75” on center line.
- For installation, CMC® recommends the use of a 9” insulated Allen wrench.
- A torque wrnch should be used to ensure the proper torque is achieved.
Specifications
Key Specifications
- Country of Origin
- United States
- Voltage Rating
- 600 V
- Conductor Range
- 750 Kcmil - #2 AWG
- Number of Mounting Holes
- 14
- Class Code
- C02
- Harmonization Code
- 8536904000
- Sub Class Code
- C02C203
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00192663082568
- Package - GTIN - Package
- 30192663082569
- Package Weight
- 7.125 lb.
Product Type1 Cable
Width11.75 in
Number Of Conductors16
TypeBolted Lugs & Terminals
Freight Class Code06120000
Image Actual Or RepresentativeA
MaterialAluminum Alloy, 6061-T6
BOX SIZE(in)
Case - SCC-14 Next Lower Level Sub Pack30192663082569
Package Quantity4 EA
NAICS Code335313A113
