Burndy YGHC26C26 Copper Compression Connector for Direct Burial Cables, 1-2/0 AWG, 3/8 Inch Rod
- MPN: YGHC26C26
- UPC: 781810221037
- PPN: BUR-279114
CAD
$52.71
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

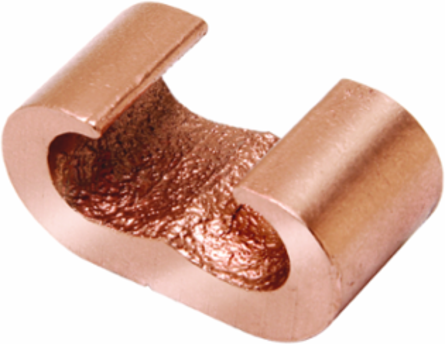

Copper Compression C Connector, 1 - 2/0 AWG(Str), 3/8" Rod (Run) & 1 - 2/0 AWG(Str) (Tap).
Features
- The smart C-shaped opening design allows you to easily slip the connector onto two continuous, parallel copper cables without cutting or splicing the run. This irreversible compression tap significantly speeds up substation grounding and commercial infrastructure layouts while eliminating the performance drops associated with joint connections.
- Engineered for high-capacity power distribution, this heavy-duty tap accommodates both main and tap conductors spanning from #1 AWG to 2/0 AWG stranded copper wire. This wide range-taking design minimizes inventory requirements while providing industrial-grade versatility for your specific electrical wiring system.
- Each grounding connector comes pre-filled with high-conductivity PENETROX oxide-inhibiting compound and is strip-sealed to protect contact surfaces right out of the box. This prevents galvanic corrosion between metals, lowers electrical resistance, and ensures maximum continuity over decades of heavy service.
- Manufactured from a robust, high-strength copper alloy, this irreversible compression connector is specifically certified for direct burial in earth or concrete. It withstands impact and resists environmental stress without contact distortion, maintaining long-term grid integrity under demanding physical conditions.
- This heavy-duty copper compression tap is fully UL 467 Listed, and certified to CSA C22.2 No. 42 standards for grounding and bonding applications. It delivers safe, code-compliant infrastructure performance that easily satisfies safety inspections on industrial job sites.
Documentation & Downloads
Specifications
Additional
- Connector Type
- Tap
- Rod Size
- 3/8 in
- Certification - UL Listed Direct Burial
- Yes
- Length Overall
- 0.75 in
- Number of Crimps Required
- 1
- Plating
- Unplated
- Certification - ETL
- No
- RoHS Compliance
- CM
- Trade Name
- HYTAP14
Conductor Size Range1 AWG-2/0 AWG
UL ListedYes
TypeTaps
Height1.54 in
MaterialCopper
Certification - cULusNo
Industry Standard(s)Direct Burial
Sub BrandHYGROUND, HYTAP
