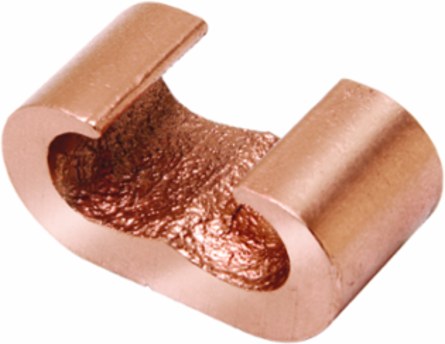

Burndy YGHC2C2 Copper Compression Connector for 6 AWG to 2 AWG Cables, 1/4 Inch Rod, Direct Burial
- MPN: YGHC2C2
- UPC: 781810221013
- PPN: BUR-279112
CAD
$38.38
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper Compression C Connector, 6 AWG(Sol) - 2 AWG(Str), 1/4" Rod(Run) & 6 AWG(Sol) - 2 AWG(Str) (Tap).
Documentation & Downloads
Specifications
Additional
- UL Listed
- Yes
- Certification - UL Recognized
- No
- Certification - cULus
- No
- Industry Standards Met
- UL467, IEEE 837, IEEE 837 2014 Qualified, UL468A-468B
- Type
- Taps
- Material
- Copper
- Number of Crimps Required
- 1
- Dimension - Length Overall inch
- 0.75 in
- Dimension - Height inch
- 1.16 in
- Conductor Size Range (Run)
- 6 AWG-2 AWG
- Conductor - Copper Str Run Range
- 7 AWG-2 AWG
- Conductor - Copper Solid Tap Range
- 6 AWG-2 AWG
- Conductor - Copper Solid Run
- 6 AWG, 5 AWG, 4 AWG, 3 AWG, 2 AWG
- Conductor - Copper Str Run
- 7 AWG, 6 AWG, 5 AWG, 4 AWG, 3 AWG, 2 AWG
- Ground Rod Size
- 1/4 in
- Conductor - Rod Run
- 1/4 in
Certification - CSA ApprovedYes
Certification - ETLNo
Certification - UL Listed Direct BurialYes
Standards - RoHS Compliance StatusCM
Connector TypeTap
ShapeC
Dimensions - Length Overall0.75 in
Dimensions - Height1.16 in
Dimension - Height fraction1-4/25 in
Conductor - Copper Solid Run Range6 AWG-2 AWG
Conductor Size Range (Tap)6 AWG-2 AWG
Conductor - Copper Str Tap Range7 AWG-2 AWG
Conductor - Copper Solid Tap6 AWG, 5 AWG, 4 AWG, 3 AWG, 2 AWG
Conductor - Copper Str Tap7 AWG, 6 AWG, 5 AWG, 4 AWG, 3 AWG, 2 AWG
Conductor - Rod Run Range1/4 in
