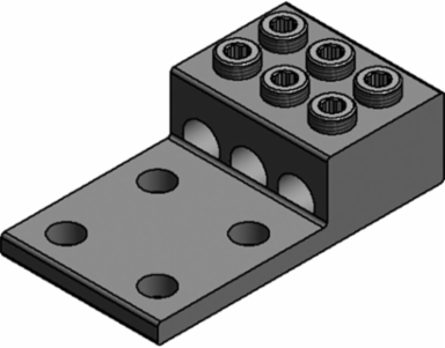

Heavy-duty transformer connectors, uni-joint
CMC

CMC L3D4-1000I Heavy-duty transformer connectors, uni-joint

  • MPN: L3D4-1000I
  • UPC: 192663088447
  • PPN: BUR-C58701690I

CAD

$163.60

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Heavy-duty transformer connectors, uni-joint, Dual rated connectors for Aluminum or Copper conductors

Features

  • Clear Plated for low-contact resistance.
  • Fully tested to ANSI C119.4 for Class ‘A’ connectors.
  • Supplied with aluminum radial tipped set-screws.
  • Connector fabricated from 6061-T6 aluminum alloy for conductivity and strength.
  • Designed for installation on standard two and four-hole spades.
  • All mounting holes 1.75” on center line.
  • For installation, CMC® recommends the use of a 9” insulated Allen wrench.
  • A torque wrench should be used to ensure the proper torque is achieved.

Specifications

Key Specifications

Country of Origin
United States
Dimensions
6.19 in x 4.92 in x 1.88 in
Length
6.19 in
Voltage Rating
600 V
Conductor Range
1000 Kcmil-350 Kcmil
Number of Mounting Holes
4
Class Code
C02
Harmonization Code
8535908020
Sub Class Code
C02C203
Base Unit of Measure
EA
Carton - SCC-14 Next Lower Level Sub Pack
00192663088447
Package - GTIN - Package
30192663088448
Package Weight
2.775 lb.
Depth0.56 in
Height1.88 in
Product Type3 Cables
Width4.92 in
Number Of Conductors3
TypeBolted Lugs & Terminals
Freight Class Code06120000
Image Actual Or RepresentativeA
MaterialAluminum Alloy, 6061-T6
BOX SIZE(in)
Case - SCC-14 Next Lower Level Sub Pack30192663088448
Package Quantity12 EA
NAICS Code3359319101
