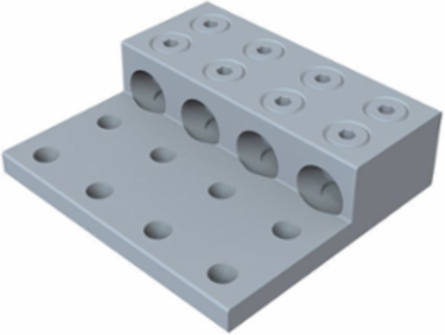

CMC L4D8-1000I Heavy-duty transformer connectors, uni-joint
- MPN: L4D8-1000I
- UPC: 192663072125
- PPN: HBL-C58700120I
CAD
$385.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Heavy-duty transformer connectors, uni-joint, Dual rated connectors for Aluminum or Copper conductors
Features
- Clear Plated for low-contact resistance
- Fully tested to ANSI C119.4 for Class ‘A’ connectors
- Supplied with aluminum radial tipped set-screws
- All mounting holes 1.75” on center line
- Designed for installation on standard two and four-hole spades
- Connector fabricated from 6061-T6 aluminum alloy for conductivity and strength
- For installation, CMC® recommends the use of a 9” insulated Allen wrench
- A torque wrnch should be used to ensure the proper torque is achieved
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 6.19 in x 6.5 in x 1.88 in
- Length
- 6.19 in
- Voltage Rating
- 600 V
- Conductor Range
- 1000 Kcmil-350 Kcmil
- Number Of Conductors
- 4
- Type
- L-D
- Freight Class Code
- 06120000
- Image Actual Or Representative
- A
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00192663072125
- Package - GTIN - Package
- 30192663072126
- Package Weight
- 3.626 lb.
Dimension - Hole Size inch.56 in
Height1.88 in
Product Type4 Cables
Width6.5 in
Cover TypeLDC-3
Number of Holes8
Class CodeC02
Harmonization Code8536904000
Sub Class CodeC02C203
BOX SIZE(in)
Case - SCC-14 Next Lower Level Sub Pack30192663072126
Package Quantity12 EA
NAICS Code335931
