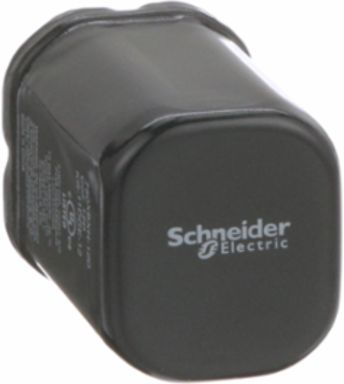

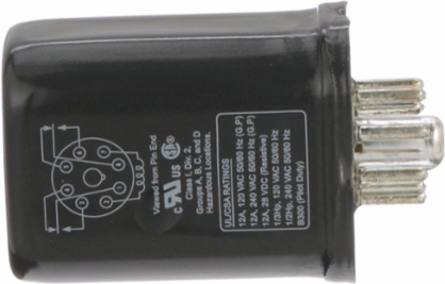

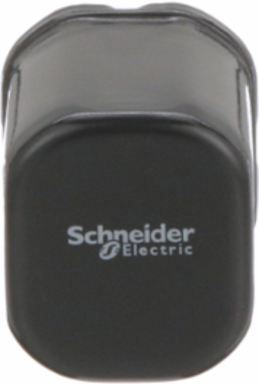

Schneider Electric 750XBXH-12D Relay, General Purpose Relays, DPDT, hermetically, hazardous location series, octal terminal 8 pins, 12A, 12V DC, 2NC + 2NO
- MPN: 750XBXH-12D
- PPN: SCH-750XBXH-12D
CAD
$223.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The SE Relays 750R series, plug-in general purpose relay offeres robust and historically proven octal style mounting relay platform that provides excellent structural support with hermetically sealed for wash down conditions cover compliant with UL Class I Division 2 for Hazardous Locations Groups A, B, C, and D. Contacts rated as 12A resistive at 120VAC/240VAC, 1/3hp at 120VAC, 1hp at 277VAC with nominal coil voltage 12VDC , make relay to be an ideal choice for automation panels and controls. Silver alloy contact DPDT configuration reduces oxidation and increases shelf life, gives simultaneous control of separate circuits. Socket-mounting option simplified installation and maintenance and using of protection modules, hold-down clips, and other accessories. Mechanical standard flag indicator displays the relay status during testing or operation.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
Depth41.2 mm
Complementary Attributes
- Maximum Horse Power Rating
- 0.5 hp 240 V AC 50/60 Hz0.33 hp 120 V AC 50/60 Hz
- Minimum Switching Current
- 100 mA 5 V
Maximum Switching Voltage300 V
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Dielectric Strength
- 1600 V AC between coil and contact, 1600 V AC between poles1500 V AC between open contacts
- Certificate Agency
- UL, CSA
- Drop-out Voltage Threshold
- >= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC>= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.3 kg CO2 eq., 0.26628582006664203
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.9 kg CO2 eq., 0.8865894113291375
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 4
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Contacts Type And Composition
- 2 NC + 2 NO
- Mechanical Durability
- 10000000 cycles
- Operating Time
- 20 ms
- Product Availability
- Stock - Normally stocked in distribution facility
- Returnability
- Yes
- Software Version
- v5.9.4
- Switch Function
- DPDT
- Voltage Range
- 0.8...1.1 Un AC/DC
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- 750 series, plug-in general purpose relay offeres robust and historically proven octal style mounting relay platform that provides excellent structural support with hermetically sealed for wash down conditions cover compliant with UL Class I Division 2 for Hazardous Locations Groups A, B, C, and D. Silver alloy contact 3PDT configuration reduces oxidation and increases shelf life, gives simultaneous control of separate circuits.This product will be in active mode at 25% in overall power consumption of 1.5888 W with life span of 10 years
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; CN
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; US
- Recyclability Potential In %
- 83
- Width Nominal
- 36.5 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536410060
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Vibration Resistance+/- 1 mm 10-35 Hz)operating, +/- 1 mm 10-35 Hz)operating, +/- 1 mm 10-35 Hz)operating+/- 1 mm 10-35 Hz)not operating, +/- 1 mm 10-35 Hz)not operating, +/- 1 mm 10-35 Hz)not operating3 gn 35-150 Hz)operating, +/- 1 mm 10-35 Hz)operating, +/- 1 mm 10-35 Hz)operating6 gn 35-150 Hz)not operating
[Ie] Rated Operational Current12 A at 120 V AC conforming to UL, 12 A at 240 V AC conforming to UL12 A at 28 V DC conforming to UL
Carbon Footprint Of The Distribution Phase [A4]0.016999629766753056, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.013050055534987044, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]17 kg CO2 eq., 17.470356495468273
Local Publishable Date2026-03-26
Stocking FlagN
Weee ScopeOut
Scope PerimeterOutside of Europe
End Of Life Doc RefENVEOLI2404008EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier4
Function OptionStandard
Contacts Materialsilver alloy contacts
Electrical Durability100000 cycles resistive
Mounting Supportsocket
Power Consumption In W1.2-1.2 W DC
Product Or Component Typerelay
Shock Resistance10 gn
Sustainable PackagingYes
Total Lifecycle Carbon Footprint19 kg CO2 eq.
Pep CodeENVPEP2404008EN
Pep Verification Date2024-06-09
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US
Height Nominal52.5 mm

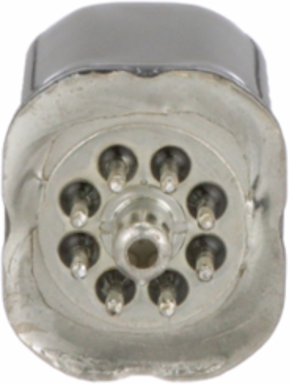

Connections - Terminalsoctal terminal - 8 pins
Package Weight(Lbs)122 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-55 °C, -40-55 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 18.653281412165793
- Environmental Disclosure
- ENVPEP2404008EN
- Ip Degree Of Protection
- IP67
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-06-09
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Reach Free ShvcYes
China Rohs RegulationX
Circularity ProfileENVEOLI2404008EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2404008EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- relay
Input Attributes
- Input Current
- 12 A
- Input Voltage
- 12 V DC
Input Resistance120 Ohm
