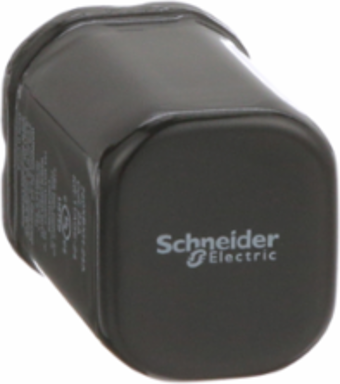

Schneider Electric 750XBXH-24A Power relay, SE Relays, 12A, DPDT, 24 VAC, hermetically sealed contacts, hazardous location series
Schneider Electric 750XBXH-24A Power relay, SE Relays, 12A, DPDT, 24 VAC, hermetically sealed contacts, hazardous location series
- MPN: 750XBXH-24A
- PPN: SCH-750XBXH-24A
- UNSPSC: 39122324
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$224.20/ EA
Description
The SE Relays 750R series, plug-in general purpose relay offeres robust and historically proven octal style mounting relay platform that provides excellent structural support with hermetically sealed for wash down conditions cover compliant with UL Class I Division 2 for Hazardous Locations Groups A, B, C, and D. Contacts rated as 12A resistive at 120VAC/240VAC, 1/3hp at 120VAC, 1hp at 277VAC with nominal coil voltage 24VAC , make relay to be an ideal choice for automation panels and controls. Silver alloy contact DPDT configuration reduces oxidation and increases shelf life, gives simultaneous control of separate circuits. Socket-mounting option simplified installation and maintenance and using of protection modules, hold-down clips, and other accessories. Mechanical standard flag indicator displays the relay status during testing or operation.
Specifications
Complementary Attributes
- Maximum Horse Power Rating
- 0.5 hp 240 V AC 50/60 Hz, 0.33 hp 120 V AC 50/60 Hz
- Maximum Switching Voltage
- 300 V
IE Rated Operational Current12 A at 120 V AC conforming to UL, 12 A at 240 V AC conforming to UL, 12 A at 28 V DC conforming to UL
Minimum Switching Current100 mA 5 V
Important Information Attributes
- Dielectric Strength
- 1600 V AC between coil and contact, 1600 V AC between poles, 1500 V AC between open contacts
- Vibration Resistance
- 3 gn 35-150 Hz)operating, +/- 1 mm 10-35 Hz)operating, +/- 1 mm 10-35 Hz)operating, +/- 1 mm 10-35 Hz)operating, 6 gn 35-150 Hz)not operating, +/- 1 mm 10-35 Hz)not operating, +/- 1 mm 10-35 Hz)not operating, +/- 1 mm 10-35 Hz)not operating
- Carbon Footprint Of The Distribution Phase A4
- 0.016999629766753056, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.013050055534987044, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 17 kg CO2 eq., 17.470356495468273
- Local Publishable Date
- 2026-01-12
- Scope Perimeter
- Outside of Europe
- End Of Life Doc Ref
- ENVEOLI2404008EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- WD Status
- 5 - INITIALIZED WITH DataSCAN OK (Migration)
- Operating Time
- 20 ms
- Power Consumption In VA
- 2.75-2.75 VA AC
- Product Availability
- Stock - Normally stocked in distribution facility
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Voltage Range
- 0.85...1.1 Un AC/DC
- Relationship Type
- Compatible relationship
- Pep Verification Date
- 2024-06-09
- PSR Version
- PSR-0005-ed2-2016 03 29
- Functional Unit Description
- 750 series, plug-in general purpose relay offeres robust and historically proven octal style mounting relay platform that provides excellent structural support with hermetically sealed for wash down conditions cover compliant with UL Class I Division 2 for Hazardous Locations Groups A, B, C, and D. Silver alloy contact 3PDT configuration reduces oxidation and increases shelf life, gives simultaneous control of separate circuits.This product will be in active mode at 25% in overall power consumption of 1.5888 W with life span of 10 years
- Product Kit Identifier
- N
Drop Out Voltage Threshold>= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC
IE Rated Operational Current12 A at 120 V AC conforming to UL, 12 A at 240 V AC conforming to UL, 12 A at 28 V DC conforming to UL
Carbon Footprint Of The End Of Life Phase C1 To C40.3 kg CO2 eq., 0.26628582006664203
Carbon Footprint Of The Manufacturing Phase A1 To A30.9 kg CO2 eq., 0.8865894113291375
Local Data StatusPublishable
Legacy WEEE ScopeOut
EOLI Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticYes
Return IndicatorY
Electrical Durability100000 cycles resistive
Package Weight Lbs130 g
Power Consumption In W1.2-1.2 W DC
Product Or Component Typerelay
Shock Resistance10 gn
Total Lifecycle Carbon Footprint19 kg CO2 eq.
Connections Terminalsoctal terminal - 8 pins
Pep CodeENVPEP2404008EN
PCR VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit UnitUnit
Product ManagerZHEN YIN
Environment Attributes Main
- EU ROHS Directive
- Compliant?, Pro-active compliance (Product out of EU RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 18.653281412165793
- Environmental Disclosure
- ENVPEP2404008EN
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-06-09
- PSR Version
- PSR-0005-ed2-2016 03 29
ROHS Exemption InformationYes
Reach Free SHVCYes
China ROHS RegulationX
Circularity ProfileENVEOLI2404008EN
Packaging Made With Recycled CardboardYes
Reach Free Of SVHCYes
Pep CodeENVPEP2404008EN
PCR VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- relay
Input Attributes
- Input Current
- 12 A
Input Voltage24 V AC
