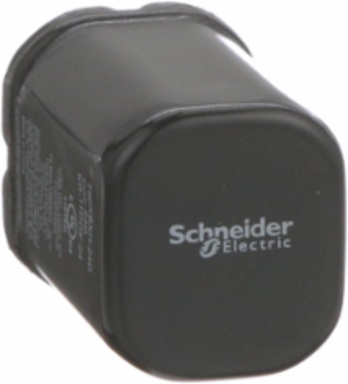

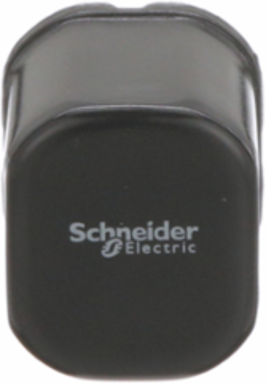

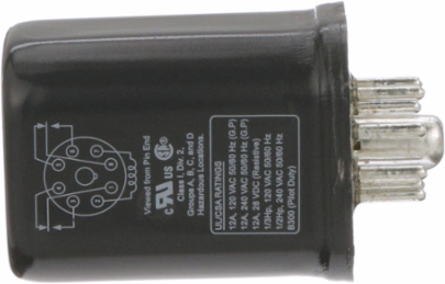

Schneider Electric 750XBXH-24D Relay, General Purpose Relays, DPDT, hermetically hazardous location series, octal terminal 8 pins, 12A, 24V DC, 2NC + 2NO
Schneider Electric 750XBXH-24D Relay, General Purpose Relays, DPDT, hermetically hazardous location series, octal terminal 8 pins, 12A, 24V DC, 2NC + 2NO
- MPN: 750XBXH-24D
- PPN: SCH-750XBXH-24D
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$223.51/ EA
Description
The SE Relays 750R series, plug-in general purpose relay offers robust and historically proven octal style mounting relay platform that provides excellent structural support with hermetically sealed for wash down conditions cover. General purpose plug-in relays are available in many different package styles and most are compatible with multiple accessories and/or sockets. Contacts rated as 12A resistive at 120VAC/240VAC, 1/3hp at 120VAC, 1hp at 277VAC with nominal coil voltage 24VDC , make relay to be an ideal choice for automation panels and controls. Silver alloy contact DPDT configuration reduces oxidation and increases shelf life, gives simultaneous control of separate circuits. Socket-mounting option simplified installation and maintenance and using of protection modules, hold-down clips, and other accessories. Mechanical standard flag indicator displays the relay status during testing or operation.
Specifications
Assets
- Cad
- https://download.schneider-electric.com/files?p_Doc_Ref=750XBXH-24D_3D&p_File_name=750XBXH-24D_3D.stp, https://download.schneider-electric.com/files?p_Doc_Ref=750XBXH-24D_3D&p_File_name=750XBXH-24D-SchneiderElectricMagnecraft-2DFrontView-03-10-2020.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=750XBXH-24D_3D&p_File_name=750XBXH-24D-SchneiderElectricMagnecraft-2DRightSideView-03-10-2020.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=750XBXH-24D_3D&p_File_name=750XBXH-24D_3D.dxf
Conformance Attributes
- Product Certifications
- UL, CSA
Complementary Attributes
- Maximum Horse Power Rating
- 0.5 hp 240 V AC 50/60 Hz, 0.33 hp 120 V AC 50/60 Hz
- Maximum Switching Voltage
- 300 V
Ie Rated Operational Current12 A at 120 V AC conforming to UL, 12 A at 240 V AC conforming to UL, 12 A at 28 V DC conforming to UL
Minimum Switching Current100 mA 5 V
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Dielectric Strength
- 1600 V AC between coil and contact, 1600 V AC between poles, 1500 V AC between open contacts
- Vibration Resistance
- +/- 1 mm 10-35 Hz)operating, +/- 1 mm 10-35 Hz)operating, +/- 1 mm 10-35 Hz)operating, +/- 1 mm 10-35 Hz)not operating, +/- 1 mm 10-35 Hz)not operating, +/- 1 mm 10-35 Hz)not operating, 3 gn 35-150 Hz)operating, +/- 1 mm 10-35 Hz)operating, +/- 1 mm 10-35 Hz)operating, 6 gn 35-150 Hz)not operating
- Carbon Footprint Of The Distribution Phase A4
- 0.016999629766753056, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.013050055534987044, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 17 kg CO2 eq., 17.470356495468273
- Local Data Status
- Publishable
- Global Commercial Status
- Commercialised
- Stocking Flag
- Y
- Scope Perimeter
- Outside of Europe
- End Of Life Doc Ref
- ENVEOLI2404008EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Full Compliance Status
- Compliant
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option
- Standard
- Contacts Material
- silver alloy contacts
- Electrical Durability
- 100000 cycles resistive
- Mounting Support
- socket
- Power Consumption In W
- 1.2-1.2 W DC
- Product Or Component Type
- relay
- Shock Resistance
- 10 gn
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 19 kg CO2 eq.
- Connections Terminals

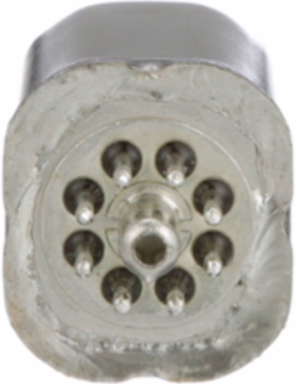

- octal terminal - 8 pins
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- 750 series, plug-in general purpose relay offeres robust and historically proven octal style mounting relay platform that provides excellent structural support with hermetically sealed for wash down conditions cover compliant with UL Class I Division 2 for Hazardous Locations Groups A, B, C, and D. Silver alloy contact 3PDT configuration reduces oxidation and increases shelf life, gives simultaneous control of separate circuits.This product will be in active mode at 25% in overall power consumption of 1.5888 W with life span of 10 years
- Energy Model Manufacturing A1 A3 2
- Electricity Mix; Production mix; Low voltage; CN
- Energy Model Use B6 2
- Electricity Mix; Production mix; Low voltage; US
- Height Nominal
- 52.5 mm
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Drop Out Voltage Threshold>= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC, >= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC
Ie Rated Operational Current12 A at 120 V AC conforming to UL, 12 A at 240 V AC conforming to UL, 12 A at 28 V DC conforming to UL
Carbon Footprint Of The End Of Life Phase C1 To C40.3 kg CO2 eq., 0.26628582006664203
Carbon Footprint Of The Manufacturing Phase A1 To A30.9 kg CO2 eq., 0.8865894113291375
Medium DescRelay, General Purpose Relays, DPDT, hermetically hazardous location series, octal terminal 8 pins, 12A, 24V DC, 2NC + 2NO
Local Publishable Date2026-03-17
Return IndicatorY
Legacy Weee ScopeOut
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
China Rohs In ScopeYes
Without Single Use PlasticYes
Function Option IdSTANDARD
Product Kit IdentifierN
Contacts Type And Composition2 NC + 2 NO
Mechanical Durability10000000 cycles
Operating Time20 ms
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Software Versionv5.9.4
Switch FunctionDPDT
Voltage Range0.8...1.1 Un AC/DC
Pep CodeENVPEP2404008EN
Pep Verification Date2024-06-09
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional Unit UnitUnit
Energy Model Installation A5 2Electricity Mix; Production mix; Low voltage; US
Energy Model End Of Life C1 C4 2Electricity Mix; Production mix; Low voltage; US
Width Nominal36.5 mm
Environment Attributes Main
- Take Back
- Nej
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 18.653281412165793
- Ambient Air Temperature For Storage
- -40-85 °C
- Environmental Disclosure
- ENVPEP2404008EN
- Ip Degree Of Protection
- IP67
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-06-09
- Psr Version
- PSR-0005-ed2-2016 03 29
Reach Free ShvcYes
China Rohs RegulationX
Ambient Air Temperature For Operation-40-55 °C
Circularity ProfileENVEOLI2404008EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2404008EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- relay
Input Attributes
- Input Current
- 12 A
- Input Voltage
- 24 V DC
Input Resistance470 Ohm
Specifications
- Depth
- 41.2 mm
