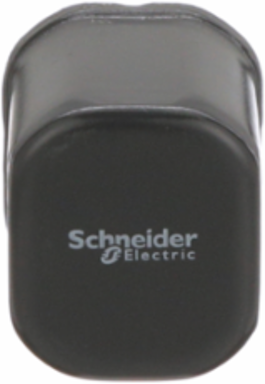

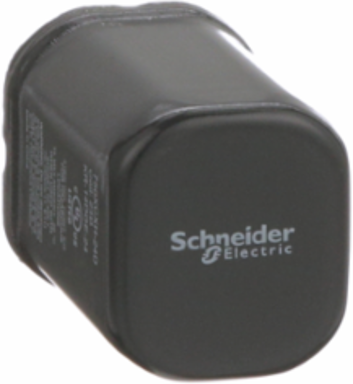

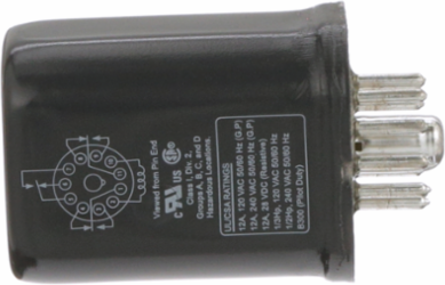

Schneider Electric 750XCXH-24D Relay, General Purpose Relays, 3PDT, hermetically, hazardous location series, octal terminal 11 pins, 12A, 24V DC, 3NC + 3NO
- MPN: 750XCXH-24D
- PPN: SCH-750XCXH-24D
CAD
$261.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The SE Relays 750R series is a plug-in general-purpose relay offering a robust and historically proven octal-style mounting platform. It provides excellent structural support with a hermetically sealed cover suitable for wash-down conditions. General-purpose plug-in relays in this series are available in multiple package styles and are compatible with a wide range of accessories and sockets. The contacts are rated at 12A resistive at 120VAC/240VAC, 1/3hp at 120VAC, and 1hp at 277VAC, with a nominal coil voltage of 24VDC, making the relay ideal for automation panels and control applications. The silver alloy 3PDT contact configuration reduces oxidation, increases shelf life, and enables simultaneous control of separate circuits. The socket-mounting option simplifies installation and maintenance and supports the use of protection modules, hold-down clips, and other accessories. A mechanical standard flag indicator clearly displays the relay status during testing or operation.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China, United States |
|---|
| Depth | 41.2 mm |
|---|
Complementary Attributes
| Maximum Horse Power Rating | 0.5 hp 240 V AC 50/60 Hz0.33 hp 120 V AC 50/60 Hz |
|---|---|
| Minimum Switching Current | 100 mA 5 V |
| Maximum Switching Voltage | 300 V |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Dielectric Strength | 1600 V AC between coil and contact, 1600 V AC between poles1500 V AC between open contacts |
| Certificate Agency | UL, CSA |
| Drop-out Voltage Threshold | >= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC>= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.3 kg CO2 eq., 0.26628582006664203 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.9 kg CO2 eq., 0.8865894113291375 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Weee Scope | Out |
| Scope Perimeter | Outside of Europe |
| End Of Life Doc Ref | ENVEOLI2404008EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 4 |
| Function Option | Standard |
| Contacts Material | silver alloy contacts |
| Electrical Durability | 100000 cycles resistive |
| Mounting Support | socket |
| Power Consumption In W | 1.2-1.2 W DC |
| Product Or Component Type | relay |
| Shock Resistance | 10 gn |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 20 kg CO2 eq. |
| Pep Code | ENVPEP2404008EN |
| Pep Verification Date | 2024-06-09 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; US |
| Height Nominal | 52.5 mm |

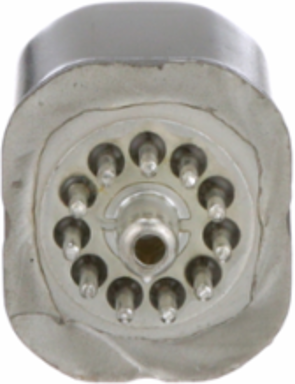

| Connections - Terminals | octal terminal - 11 pins |
| Package Weight(Lbs) | 123 g |
| Warranty (In Months) | 18 |
| Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6] | 19.022 |
| Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6] | 226.81 |
| Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6] | 2.8092 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] | 454.25 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 403.63 |
| Customs Code | 8536410060 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Vibration Resistance | +/- 1 mm 10-35 Hz)operating, +/- 1 mm 10-35 Hz)operating, +/- 1 mm 10-35 Hz)operating+/- 1 mm 10-35 Hz)not operating, +/- 1 mm 10-35 Hz)not operating, +/- 1 mm 10-35 Hz)not operating3 gn 35-150 Hz)operating, +/- 1 mm 10-35 Hz)operating, +/- 1 mm 10-35 Hz)operating6 gn 35-150 Hz)not operating |
| [Ie] Rated Operational Current | 12 A at 120 V AC conforming to UL, 12 A at 240 V AC conforming to UL12 A at 28 V DC conforming to UL |
| Carbon Footprint Of The Distribution Phase [A4] | 0.016999629766753056, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.013050055534987044, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 19 kg CO2 eq., 19.022 |
| Local Publishable Date | 2026-03-26 |
| Stocking Flag | Y |
| Use Carbon Footprint | 19.022 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 4 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Contacts Type And Composition | 3 NO + 3 NC |
| Mechanical Durability | 10000000 cycles |
| Operating Time | 20 ms |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Software Version | v5.9.4 |
| Switch Function | 3PDT |
| Voltage Range | 0.8...1.1 Un AC/DC |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | 750 series, plug-in general purpose relay offeres robust and historically proven octal style mounting relay platform that provides excellent structural support with hermetically sealed for wash down conditions cover compliant with UL Class I Division 2 for Hazardous Locations Groups A, B, C, and D. Silver alloy contact 3PDT configuration reduces oxidation and increases shelf life, gives simultaneous control of separate circuits.This product will be in active mode at 25% in overall power consumption of 1.5888 W with life span of 10 years |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; CN |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; US |
| Recyclability Potential In % | 83 |
| Width Nominal | 36.5 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6] | 19.002 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] | 403.63 |
| Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6] | 15.995 |
| Terrestrial Eutrophication (Mole Of N Equiv) Operational Energy Use [B6] | 0.1405 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 50.619 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 50.619 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-55 °C, -40-55 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 20.204924916697518 |
| Environmental Disclosure | ENVPEP2404008EN |
| Ip Degree Of Protection | IP67 |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2024-06-09 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2404008EN |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2404008EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | relay |
|---|
Input Attributes
| Input Current | 12 A |
|---|---|
| Input Voltage | 24 V DC |
| Input Resistance | 470 Ohm |
|---|
