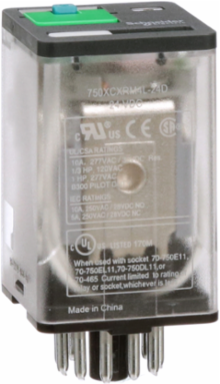

Schneider Electric 750XCXRM4L-24D General purpose relay, SE Relays, 750R, 3PDT, 10A, 24VDC, octal terminal 11 pins, LED clear cover, lock push button
- MPN: 750XCXRM4L-24D
- PPN: SCH-750XCXRM4L-24D
CAD
$36.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The SE Relays 750R series, plug-in general purpose relay offeres robust and historically proven octal style mounting relay platform that provides excellent structural support with clear cover with LED indicator and locking test button. Contacts rated as 10A at 277VAC, 1/3hp at 120VAC, 1hp at 277VAC with nominal coil voltage 24VDC , make relay to be an ideal choice for automation panels and controls. Gold flashed contact 3PDT configuration reduces oxidation and increases shelf life, gives simultaneous control of separate circuits. Socket-mounting option simplified installation and maintenance and using of protection modules, hold-down clips, and other accessories. Mechanical standard flag indicator displays the relay status during testing or operation.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| Depth | 35.5 mm |
|---|
Complementary Attributes
| Maximum Switching Voltage | 300 V AC UL30 V DC UL250 V AC IEC, 28 V DC IEC |
|---|---|
| Line Rated Current | 10 A |
| Rated Power In Hp | 0.33 HP 120 V AC1 HP 277 V AC |
| Control Circuit Voltage Limits | 0.8...1.1 Un DC |
|---|---|
| Minimum Switching Current | 10 mA 17 V DC |
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Local Signalling | LED Cover, flag |
| Certificate Agency | UL, CSA, CE, EAC |
| Carbon Footprint Of The Distribution Phase [A4] | 0.011768974453905961, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.009034653831914107, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 21 kg CO2 eq., 20.9136641490433 |
| Local Publishable Date | 2026-03-26 |
| Stocking Flag | Y |
| Weee Scope | Out |
| Scope Perimeter | Outside of Europe |
| End Of Life Doc Ref | ENVEOLI2404008EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 4 |
| Function Option | Standard |
| Average Coil Consumption | 1.4 W |
| Contacts Type And Composition | 3 NO + 3 NC |
| Dielectric Strength | 2500 V AC between coil and contact2000 V AC between poles1500 V AC between contacts |
| Mechanical Durability | 5000000 cycles |
| Operating Time | 20 ms |
| Product Or Component Type | plug-in electromechanical relay |
| Returnability | Yes |
| Software Version | v5.9.4 |
| Switch Function | 3PDT |
| Pep Code | ENVPEP2404008EN |
| Pep Verification Date | 2024-06-09 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; US |
| Width Nominal | 35 mm |
| [Ue] Rated Operational Voltage | 24 V DC |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536410050 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Vibration Resistance | +/- 1 mm 10-35 Hz in operation, +/- 1 mm 10-35 Hz in operation, +/- 1 mm 10-35 Hz in operation, +/- 1 mm 10-35 Hz in operation, +/- 1 mm 10-35 Hz in operation, +/- 1 mm 10-35 Hz in operation3 gn 35-150 Hz in operation |
| Drop-out Voltage Threshold | >= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC>= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.2 kg CO2 eq., 0.1843517215845983 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.6 kg CO2 eq., 0.6137926693817106 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 4 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Contacts Material | silver alloy, gold flashed |
| Control Type | lockable test button |
| Electrical Durability | 100000 cycles |
| Mounting Support | plug-inside flange |
| Product Availability | Stock - Normally stocked in distribution facility |
| Resistance | 470 Ohm |
| Shock Resistance | 10 gn |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 22 kg CO2 eq. |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | 750 series, plug-in general purpose relay offeres robust and historically proven octal style mounting relay platform that provides excellent structural support with hermetically sealed for wash down conditions cover compliant with UL Class I Division 2 for Hazardous Locations Groups A, B, C, and D. Silver alloy contact 3PDT configuration reduces oxidation and increases shelf life, gives simultaneous control of separate circuits.This product will be in active mode at 25% in overall power consumption of 1.5888 W with life span of 10 years |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; CN |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; US |
| Height Nominal | 55 mm |
| [Ie] Rated Operational Current | 5 A at 28 V DC-1 (1 NC) (on resistive load) conforming to IEC10 A at 277 V AC (on resistive load) conforming to UL10 A at 30 V DC (on resistive load) conforming to UL10 A at 250 V AC-1 (1 NO) (on resistive load) conforming to IEC10 A at 28 V DC-1 (1 NO) (on resistive load) conforming to IEC5 A at 250 V AC-1 (1 NC) (on resistive load) conforming to IEC |
| Connections - Terminals | octal terminal connector socket 11 pins) |
| Package Weight(Lbs) | 0.09 kg |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-55 °C, -40-55 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 21.73261216829543 |
| Environmental Disclosure | ENVPEP2404008EN |
| Ip Degree Of Protection | IP40 |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2024-06-09 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2404008EN |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2404008EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | plug-in electromechanical relay |
|---|
