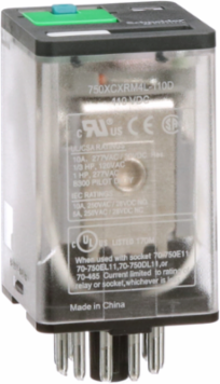

Schneider Electric 750XCXRM4L-110D General purpose relay, SE Relays, 750R, 3PDT, 10A, 110VDC, octal terminal 11 pins, LED clear cover, lock push button
- MPN: 750XCXRM4L-110D
- PPN: SCH-750XCXRM4L-110D
CAD
$37.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The SE Relays 750R series, plug-in general purpose relay offeres robust and historically proven octal style mounting relay platform that provides excellent structural support with clear cover with LED indicator and locking test button. Contacts rated as 10A at 277VAC, 1/3hp at 120VAC, 1hp at 277VAC with nominal coil voltage 110VDC , make relay to be an ideal choice for automation panels and controls. Gold flashed contact 3PDT configuration reduces oxidation and increases shelf life, gives simultaneous control of separate circuits. Socket-mounting option simplified installation and maintenance and using of protection modules, hold-down clips, and other accessories. Mechanical standard flag indicator displays the relay status during testing or operation.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
Depth35.5 mm
Complementary Attributes
- Maximum Switching Voltage
- 300 V AC UL30 V DC UL250 V AC IEC, 28 V DC IEC
- Line Rated Current
- 10 A
- Rated Power In Hp
- 0.33 HP 120 V AC1 HP 277 V AC
Control Circuit Voltage Limits0.8...1.1 Un DC
Minimum Switching Current10 mA 17 V DC
Important Information Attributes
- Local Signalling
- LED Cover, flag
- Certificate Agency
- UL, CSA, CE, EAC
- Carbon Footprint Of The Distribution Phase [A4]
- 0.011768974453905961, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.009034653831914107, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 24 kg CO2 eq., 24.018281442318447
- Local Publishable Date
- 2026-04-29
- Stocking Flag
- Y
- Weee Scope
- Out
- Scope Perimeter
- Outside of Europe
- End Of Life Doc Ref
- ENVEOLI2404008EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Kit Identifier
- N
- Contacts Material
- silver alloy, gold flashed
- Control Type
- lockable test button
- Electrical Durability
- 100000 cycles
- Mounting Support
- plug-inside flange
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Resistance
- 7300 Ohm
- Shock Resistance
- 10 gn
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 25 kg CO2 eq.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- 750 series, plug-in general purpose relay offeres robust and historically proven octal style mounting relay platform that provides excellent structural support with hermetically sealed for wash down conditions cover compliant with UL Class I Division 2 for Hazardous Locations Groups A, B, C, and D. Silver alloy contact 3PDT configuration reduces oxidation and increases shelf life, gives simultaneous control of separate circuits.This product will be in active mode at 25% in overall power consumption of 1.5888 W with life span of 10 years
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; CN
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; US
- Height Nominal
- 55 mm
- [Ie] Rated Operational Current
- 5 A at 28 V DC-1 (1 NC) (on resistive load) conforming to IEC10 A at 277 V AC (on resistive load) conforming to UL10 A at 30 V DC (on resistive load) conforming to UL10 A at 250 V AC-1 (1 NO) (on resistive load) conforming to IEC10 A at 28 V DC-1 (1 NO) (on resistive load) conforming to IEC5 A at 250 V AC-1 (1 NC) (on resistive load) conforming to IEC
- Connections - Terminals
- octal terminal connector socket 11 pins)
- Package Weight(Lbs)
- 0.09 kg
- Warranty (In Months)
- 18
Vibration Resistance+/- 1 mm 10-35 Hz in operation, +/- 1 mm 10-35 Hz in operation, +/- 1 mm 10-35 Hz in operation, +/- 1 mm 10-35 Hz in operation, +/- 1 mm 10-35 Hz in operation, +/- 1 mm 10-35 Hz in operation3 gn 35-150 Hz in operation
Drop-out Voltage Threshold>= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC>= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.2 kg CO2 eq., 0.1843517215845983
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.6 kg CO2 eq., 0.6137926693817106
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Average Coil Consumption1.4 W
Contacts Type And Composition3 NO + 3 NC
Dielectric Strength2500 V AC between coil and contact2000 V AC between poles1500 V AC between contacts
Mechanical Durability5000000 cycles
Operating Time20 ms
Product Or Component Typeplug-in electromechanical relay
ReturnabilityNo
Software Versionv5.9.4
Switch Function3PDT
Pep CodeENVPEP2404008EN
Pep Verification Date2024-06-09
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US
Width Nominal35 mm
[Ue] Rated Operational Voltage110 V DC
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536490075
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-55 °C, -40-55 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 24.837229461570576
- Environmental Disclosure
- ENVPEP2404008EN
- Ip Degree Of Protection
- IP40
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-06-09
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Reach Free ShvcYes
China Rohs RegulationX
Circularity ProfileENVEOLI2404008EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2404008EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- plug-in electromechanical relay
Accessories
