Balluff

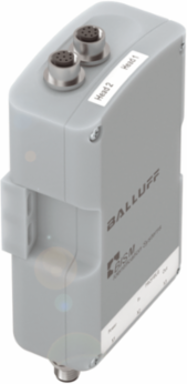

Balluff BIS M-6003-025-050-03-ST12 HF Processor Unit 13.56 MHz, 19.2-28.8 VDC, ABS, IP65

HF Processor Unit 13.56 MHz, 19.2-28.8 VDC, ABS, IP65
  • MPN: BIS M-6003-025-050-03-ST12
  • PPN: BAL-BIS00EY

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$3518.02/ EA

Description

BIS M uses the high frequency (HF) 13.56 MHz and supports the standard according to DIN ISO 15693. The processor units process the data captured by the read heads and relay it to the industrial fieldbus, which communicates with the PLC/PC. With type BIS V processor units, you can operate up to four read heads at once – regardless of whether they are LF, HF or UHF.

Specifications

Specifications

Product Group
HF (13.56 MHz)
Supported RFID technologies
HF 13.56 MHz (BIS M)
Operating voltage Ub
19.2-28.8 VDC
Ambient temperature
0-60 °C
Approval/Conformity
CE, cULus, WEEE
InterfaceDeviceNetgalvanically isolated
Number of connectable R/W heads / antennas2
Housing materialABS
IP ratingIP65 with connector
ConnectionMale, 5-pinFemale, 5-pinMale, 5-pin
