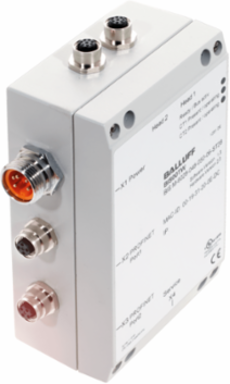

Balluff BIS M-6028-048-050-06-ST28 HF Processor Unit 13.56 MHz, IP65, Aluminum Housing, Profinet
Balluff BIS M-6028-048-050-06-ST28 HF Processor Unit 13.56 MHz, IP65, Aluminum Housing, Profinet
- MPN: BIS M-6028-048-050-06-ST28
- PPN: BAL-BIS00TW
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
BIS M uses the high frequency (HF) 13.56 MHz and supports the standard according to DIN ISO 15693. The processor units process the data captured by the read heads and relay it to the industrial fieldbus, which communicates with the PLC/PC. With type BIS V processor units, you can operate up to four read heads at once – regardless of whether they are LF, HF or UHF.
Specifications
Specifications
- Product Group
- HF (13.56 MHz)
- Supported RFID technologies
- HF 13.56 MHz (BIS M)
- Operating voltage Ub
- 19.2-28.8 VDC
- Ambient temperature
- 0-60 °C
- Approval/Conformity
- CE, cULus, WEEE
InterfaceProfinet
Number of connectable R/W heads / antennas2
Housing materialAluminum, Die casting
IP ratingIP65 with connector
ConnectionFemale, 4-pin, D-codedM12x1-Female, 4-pin, D-codedMale, 5-pin
