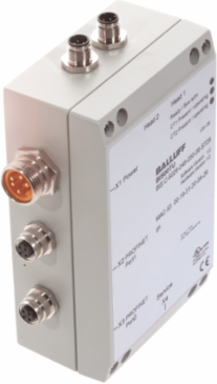

Balluff BIS C-6028-048-050-06-ST28 LF processor units (70/455 kHz) BIS C-6028-048-050-06-ST28
Balluff BIS C-6028-048-050-06-ST28 LF processor units (70/455 kHz) BIS C-6028-048-050-06-ST28
- MPN: BIS C-6028-048-050-06-ST28
- PPN: BAL-BIS00TU
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
BIS C works with low frequency (LF) and uses two frequencies: 455 kHz for writing and 70 kHz for reading. The processor units process the data recorded by the read heads and relay it to the industrial fieldbus, which communicates with the PLC/PC. With type BIS V processor units, you can operate up to four read heads at once – regardless of whether they are LF, HF or UHF.
Specifications
Specifications
- Product Group
- LF (70/455 kHz)
- Supported RFID technologies
- LF 70/455 kHz (BIS C )
- Operating voltage Ub
- 19.2-28.8 VDC
- Ambient temperature
- 0-60 °C
- Approval/Conformity
- CE, cULus, WEEE
InterfaceProfinet
Number of connectable R/W heads / antennas2
Housing materialAluminum, Die casting
IP ratingIP65 with connector
ConnectionFemale, 4-pin, D-codedM12x1-Female, 4-pin, D-codedMale, 5-pin
