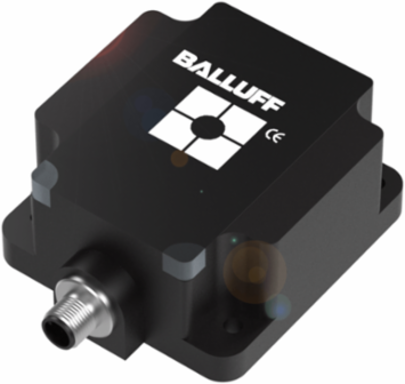

Balluff BIS M-401-007-001-00-S115 HF read/write heads (13.56 MHz) with integrated processor unit BIS M-401-007-001-00-S115

HF read/write heads (13.56 MHz) with integrated processor unit BIS M-401-007-001-00-S115
  • MPN: BIS M-401-007-001-00-S115
  • PPN: BAL-BIS00EM

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1298.54/ EA

Description

BIS M uses the high frequency (HF) 13.56 MHz and supports the standard according to DIN ISO 15693. Read heads with an integrated processor unit can be connected directly to the higher-level control system via IO-Link, RS232, TCP/IP or via Serial Subnet 16 TM. The diverse configurations, dimensions, and variants with separate or integrated read heads allow you to meet most requirements.

Specifications

Specifications

Product Group
HF (13.56 MHz)
Installation
metal-free (clear zone)
Supported data carrier types
DIN ISO 14443, DIN ISO 15693
Housing material
PBT
Operating voltage Ub
19.2-26.4 VDC
IP rating
IP67
Dimension80 x 40 x 84.5 mm
Antenna typeround
ConnectionConnector, M12x1-Male, 8-pin
InterfaceRS232
Ambient temperature0-70 °C
Approval/ConformityCE, FCC Part 15, IC RSS-210, cULus, WEEE
