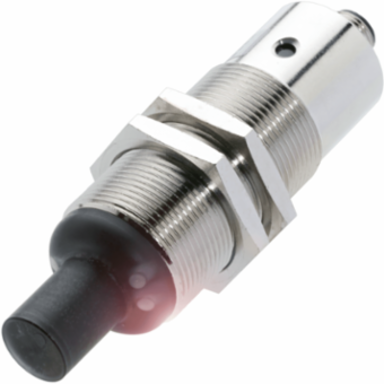

Balluff BIS M-400-007-002-00-S115 HF read/write heads (13.56 MHz) with integrated processor unit BIS M-400-007-002-00-S115
- MPN: BIS M-400-007-002-00-S115
- PPN: BAL-BIS00EK
CAD
$1385.92
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
BIS M uses the high frequency (HF) 13.56 MHz and supports the standard according to DIN ISO 15693. Read heads with an integrated processor unit can be connected directly to the higher-level control system via IO-Link, RS232, TCP/IP or via Serial Subnet 16 TM. The diverse configurations, dimensions, and variants with separate or integrated read heads allow you to meet most requirements.
Documentation & Downloads
Specifications
Key Specifications
| Product Group | HF (13.56 MHz) |
|---|---|
| Installation | metal-free (clear zone) |
| Supported data carrier types | DIN ISO 14443, DIN ISO 15693 |
| Housing material | Brass, Nickel-plated brass nuts |
| Operating voltage Ub | 19.2-26.4 VDC |
| IP rating | IP67 |
| Dimension | Ø 30 x 109.5 mm |
|---|---|
| Antenna type | round |
| Connection | Connector, M12x1-Male, 8-pin |
| Interface | RS232 |
| Ambient temperature | 0-70 °C |
| Approval/Conformity | CE, FCC Part 15, IC RSS-210, cULus, WEEE |
