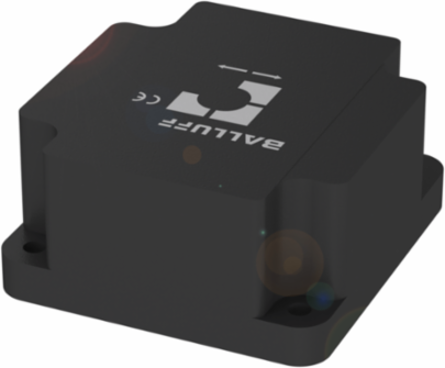

Balluff BIS M-351-001-S115 HF read/write heads and antennas (13.56 MHz) BIS M-351-001-S115
- MPN: BIS M-351-001-S115
- PPN: BAL-BIS005C
CAD
$1243.48
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
BIS M uses the high frequency (HF) 13.56 MHz and supports the standard according to DIN ISO 15693 and 14443. Read/write heads are the link between the data carrier and the processor unit. BIS M read/write heads provide absolute data security. These are available in a wide variety of configurations, dimensions – for example, as round/rod antennas, which means they can meet varied requirements.
Documentation & Downloads
Specifications
Key Specifications
| Product Group | HF (13.56 MHz) |
|---|---|
| Installation | metal-free (clear zone) |
| Supported data carrier types | DIN ISO 14443, DIN ISO 15693 |
| Housing material | PBT |
| IP rating | IP67 |
| Dimension | 80 x 40 x 84.5 mm |
|---|---|
| Antenna type | Rod |
| Connection | Male, 8-pin |
| Ambient temperature | 0-70 °C |
| Approval/Conformity | CE, FCC Part 15, IC RSS-210, cULus, WEEE |
