HF Read/Write Head 13.56 MHz, 25 x 10 x 50 mm, IP67

Documentation & Downloads

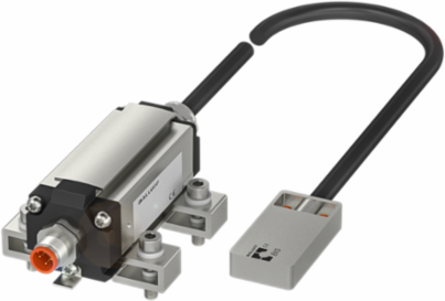

Balluff BIS M-402-045-004-07-S4 HF Read/Write Head 13.56 MHz, 25 x 10 x 50 mm, IP67

MPN: BIS M-402-045-004-07-S4
PPN: BAL-BIS00M1

CAD

$1024.44

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Compare

Description

HF Read/Write Head 13.56 MHz, 25 x 10 x 50 mm, IP67

Documentation & Downloads

Specifications

Additional

Frequency: 13.56 MHz

Data Transfer Rate: COM2 (38.4 kBaud)

Process Data Out: 10 bytes

Connection: Connector, M12x1 Male, 4-pin, 0.50 m PU cable

Housing Material: ABS, GF16, Aluminum Interface

IP Rating: IP67 per IEC 60529

Ambient Temperature: 0...70 °C

Country of Origin: Hungary

Product Group: HF (13.56 MHz)

Operating Voltage18...30 VDC, Supports only LPS/Class 2

Process Data In10 bytes

Dimensions25 x 10 x 50 mm

Antenna TypeRound

InstallationMetal-free (clear zone)

Approval/ConformityCE, UKCA, cULus, EAC, WEEE

Supported Data Carrier TypesDIN ISO 14443, DIN ISO 15693

InterfaceIO-Link 1.1
