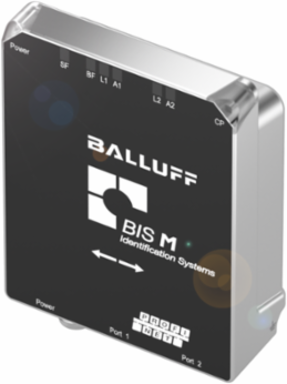

Balluff BIS M-4008-048-002-ST4 HF Read/Write Head 13.56 MHz, IP67, 80 x 35 x 119 mm
- MPN: BIS M-4008-048-002-ST4
- PPN: BAL-BIS017A
CAD
$1892.20
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
HF Read/Write Head 13.56 MHz, IP67, 80 x 35 x 119 mm
Documentation & Downloads
Specifications
Additional
| Operating Voltage | 19.2...28.8 VDC LPS Class 2 |
|---|---|
| Ambient Temperature | 0...70 °C |
| Dimensions | 80 x 35 x 119 mm |
| Connection | 2x M12x1-Female, 4-pin, D-coded; M12x1-Male, 4-pin, A-coded |
| Supported Data Carrier Types | DIN ISO 15693, DIN ISO 15693 (High Memory) |
| Housing Material | Zinc die casting |
| Country of Origin | Hungary |
| Frequency | 13.56 MHz |
|---|---|
| Interface | Profinet I/O (IRT); 2-Port Switch |
| Ingress Rating | IP67 |
| Installation | Metal-free (clear zone), flush in metal, on metal |
| Antenna Type | Rod |
| Approval/Conformity | CE, UKCA, WEEE |
